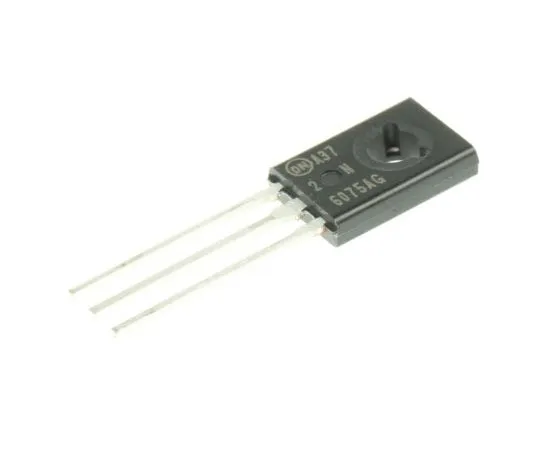

63-7626-01 2N6075AG 4A, 600V, TRIAC, Gate Trigger 2.5V 10mA, 3-pin, Through Hole, TO-225 Littelf*** 2N6075AG
Product Description
Product Model: 63-7626-01Product Brand: Littelfuse Feat […]
Contact Us
Product Details
Product Model: 63-7626-01
Product Brand: Littelfuse
Features
- TRIAC, ON Semiconductor
Spec
- Quantity:1piece
- Rated Average On-State Current : 4A
- Mounting Type : Through Hole
- Package Type : TO-225
- Maximum Gate Trigger Current : 10mA
- Repetitive Peak Reverse Voltage : 600V
- Surge Current Rating : 30A
- Pin Count : 3
- Maximum Gate Trigger Voltage : 2.5V
- Repetitive Peak Forward Blocking Voltage : 600V
- Maximum Holding Current : 15mA
- Dimensions : 7.74 x 2.66 x 11.04mm
- Length : 7.74mm
- Width : 2.66mm
- Height : 11.04mm
- Maximum Operating Temperature : +110 °C
- CODE No.:544-9961
