Electronic/Electrical Parts and Controll Equipments

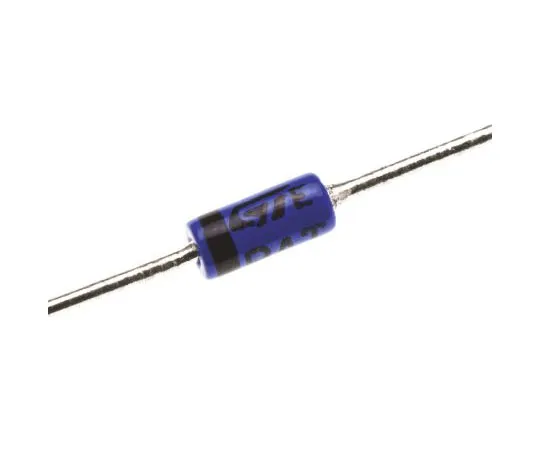

63-7625-87 STMicroelectronics 30V 200mA, Schottky Diode, 2-Pin DO-35 BAT42 BAT42
model:
63-7625-87
brand:
STMicroelectronics
Product Description
Product Model: 63-7625-87Product Brand: STMicroelectron […]
Contact Us
Product Details
Product Model: 63-7625-87
Product Brand: STMicroelectronics
Features
- STMicroelectronics BAT42/BAT43 Small Signal Schottky Diodes. The STMicroelectronics BAT42 and BAT43 are small signal Schottky diodes. They are metal-to-silicon diodes within a DO-35 package. The main difference between the BAT42 and BAT43 is their static characteristics. Please refer to the product datasheet for full information. What is the repetitive peak reverse voltage? 30V What is the storage and junction temperature range? -65ºC to +150ºC What are they ***d for? The BAT42 and BAT43 are designed for general purpose applications. They feature integrated excessive voltage protection, for example, against electrostatic discharge.
Spec
- Quantity:1set(4000pieces)
- Diode Configuration : Single
- Number of Elements per Chip : 1
- Peak Reverse Repetitive Voltage : 30V
- Mounting Type : Through Hole
- Package Type : DO-35
- Diode Technology : Schottky
- Pin Count : 2
- Peak Reverse Recovery Time : 5ns
- Diameter : 1.7mm
- Peak Non-Repetitive Forward Surge Current : 4A
- CODE No.:920-9164
