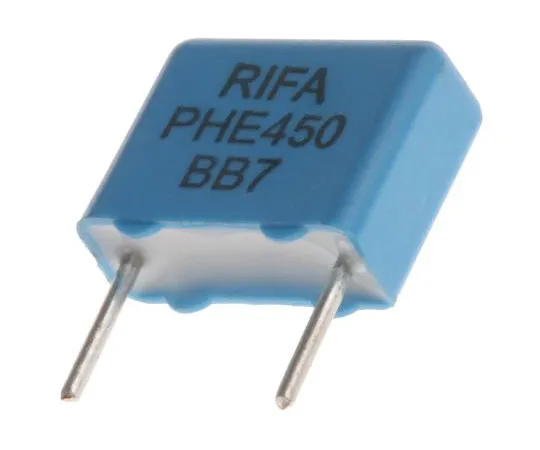

63-7625-56 KEMET 10nF Polypropylene Capacitor PP 250 V ac, 400 V dc ±5% Tolerance Through Hole PHE450 Series PHE450KK5100JR05
Product Description
Product Model: 63-7625-56Product Brand: KEMET Features […]
Contact Us
Product Details
Product Model: 63-7625-56
Product Brand: KEMET
Features
- KEMET PHE450 Series Metallized Polypropylene Capacitors. KEMET PHE450 series double metallized polypropelene film capacitors are encapsulated in a self-extinguishing resin in a box of material which meets UL 94 V-0 requirements. Suitable for applications with high current stress like protection circuits in switch mode power supplies and deflection circuits in televisions. Features. Double metallised polypropylene film pulse capacitor Rated voltage: 250 V dc to 3000 V dc Rated voltage: 180 to 1000 V ac Capacitance tolerance: ±5%, other tolerances on request Lead spacing: 7.5 mm to 37.5 mm
Spec
- Quantity:1bag(1000pieces)
- Capacitance : 10nF
- Voltage : 250 V ac, 400 V dc
- Mounting Type : Through Hole
- Tolerance : ±5%
- Series : PHE450
- Lead Pitch : 7.5mm
- Length : 10mm
- Depth : 4mm
- Height : 8mm
- Dimensions : 10 x 4 x 8mm
- Dielectric : Metallized Polypropylene
- Minimum Operating Temperature : -55°C
- CODE No.:173-4082
