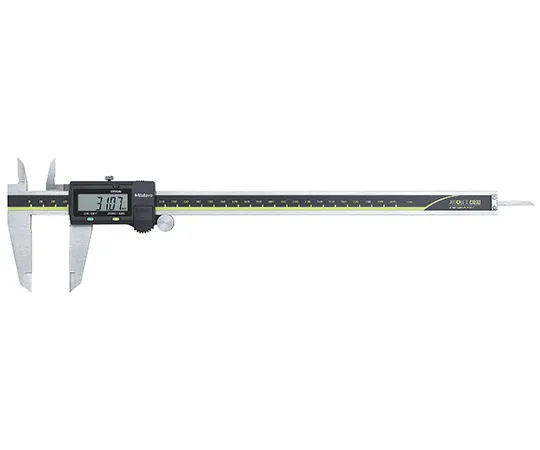

63-7289-68-57 Digimatic Caliper 500 -153 -30 Cihnese Calibration Certificate CD-30AX
Product Description
Product Model: 63-7289-68-57Product Brand: Mitutoyo Cor […]
Contact Us
Product Details
Product Model: 63-7289-68-57
Product Brand: Mitutoyo Corporation
Features
- The text height of the LCD display is increased to 11.0 mm, and the visibility is improved (about 16% increase compared with the manufacturer).
- With the ABS (absolute) scale, the origin set for each power ON is unnecessary.
- Since the width of the measuring surface is 20 mmNI, the degree of parallelism of the measuring surface is not easily disturbed.
- Achieves battery life of about 5 years (continuous 18000 hours) in normal ***.
- Note: The instrument difference does not include quantization error.
- External data output is possible with the connection cable (with DATA output switch).
- Data hold is possible with a hold unit (with HOLD switch).
Spec
- Measurement range (mm: 0 to 300
- Minimum display volume (mm): 0.01
- instrument difference (mm): ± 0.03
- Repeatability (mm): 0.01
- Samrola: Yes
- Data output: Yes
- Power supply: Silver Oxide battery (SR 44) x 1 piece
- battery life: About 5 years (normal ***)
- Position detection system: Electromagnetic induction absolute encoder system
- Response speed: Unlimited
- LCD: 7 segments 5 digits, negative, character height 11.0 mm
- Features: power supply ONOFF, Origin setting (ORIGIN), ZERO/ABS, Data output, Data hold
- Alarm device: voltage drop, scale contamination error, overflow error
- Operating temperature (deg. C): 0 to 40
- Storage temperature (degrees C): -10 to 60
- Protected grade: None
- Size: 404 x 111.5 mm
- Weight: 350 g
