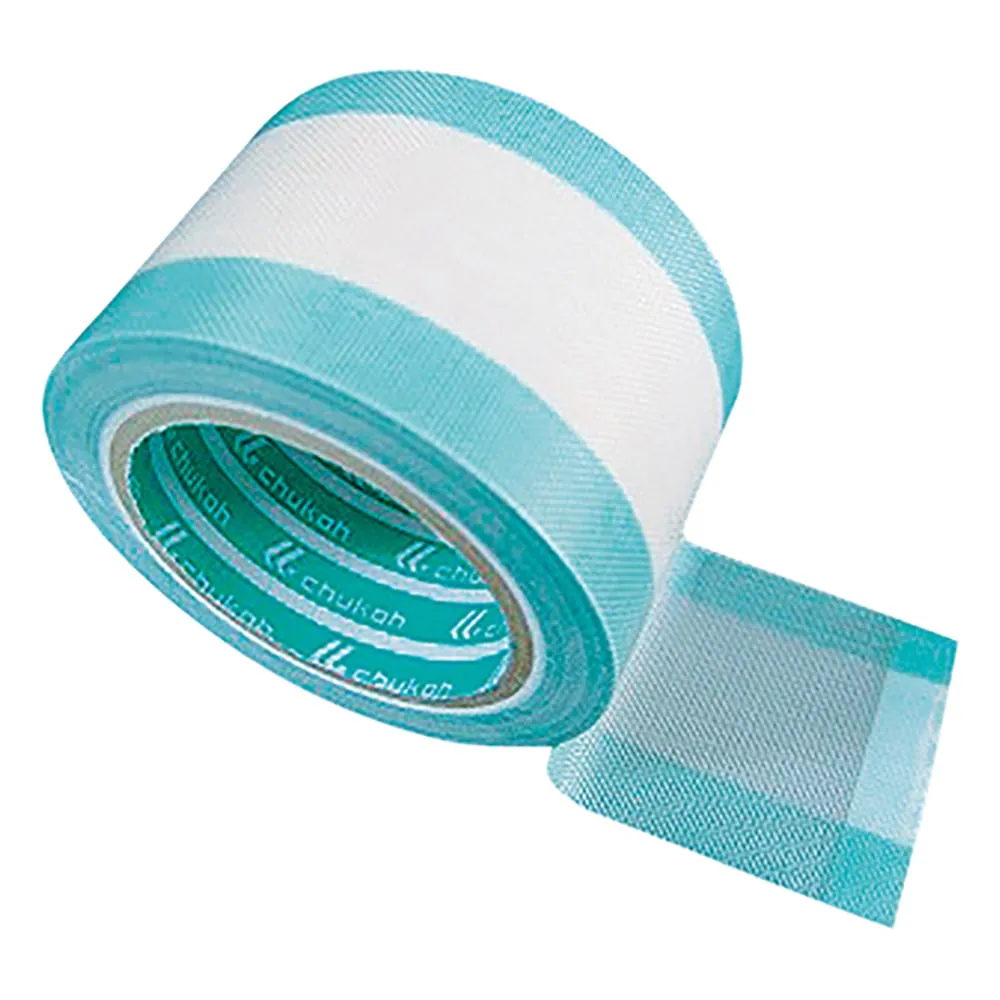

3-5518-01 Fluororesin Film Adhesive Tape AGF-102 with No Adhesive Applied To The Middle Part 38mm x 10m 0.13x38
model:
3-5518-01
category:
dissectiontoolsandsupplies
Product Description
Product Model: 3-5518-01 Features Since adhesive is not […]
Contact Us
Product Details
Product Model: 3-5518-01
Features
- Since adhesive is not applied to the center of the adhesive surface, glue does not melt due to high temperature.
- It is for a heat sealing machine, and since the adhesive does not touch the heater part directly, the heater does not get dirty easily.
- Excellent electrical insulation and dimensional stability.
Spec
- Model number: 0.13 x 38
- Width x length: 38mm x 10m
- Material: Base material/PTFE (poly tetrafluoroethylene), glass cloth, Adhesive/Silicone
- Adhesive power: 9N/25mm
- Tensile strength: 380N/25mm
- Operating temperature range: -60 to +200℃
- Thickness: 0.13mm
- Uncoated portions: 20mm
- RoHS3 (EU)2015/863 Certificates can be issued
