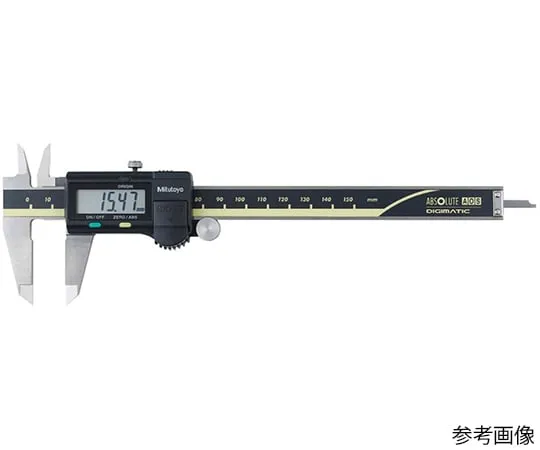

63-7254-92-57 Digimatic Caliper 500 -180 -30 Cihnese Calibration Certificate CD-10APX
Product Description
Product Model: 63-7254-92-57Product Brand: Mitutoyo Cor […]
Contact Us
Product Details
Product Model: 63-7254-92-57
Product Brand: Mitutoyo Corporation
Features
- Uses electromagnetic induction type absolute encoder. (Adopted for models with a measuring range of 200 mm or less) • Uses an ergonomic yubicake shape.
- Since ABS (absolute) scale with absolute origin is built-in, zero set for each power ON is unnecessary. It is also more reliable beca*** it never ca***s overspeed errors.
- The LCD is an easy-to-read "deca-character" type, and the high-contrast LCD can reduce fatigue.
- The slider (sliding surface) is smooth and provides a comfortable operation.
- [Notes] The CD-30C is a capacitive absolute encoder.
Spec
- Measurement range (mm): 0 to 100
- wide range accuracy (μm): 0.01
- instrument difference (mm): ± 0.02
- Measurement data output terminal: None
- Samrola: None
- Repeatability: 0.01 mm
- Quantization error: Not including ± 1 count
- Power supply: Button-Shaped Silver Oxide battery SR 44 (No. 938882) 1 piece Standard Accessory (The standard included button-shaped silver oxide battery is for monitoring.)
- Position detection method: Electromagnetic induction absolute encoder
- battery life: Approximately 5 years in normal *** (18000 consecutive hours)
- Maximum response speed: Unlimited
- Weight: 137 g
