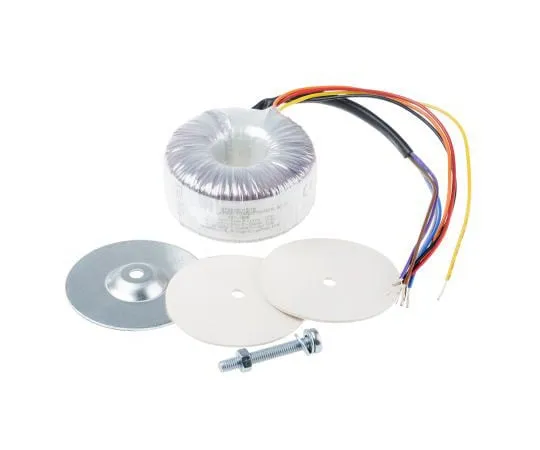

63-7621-99 2 Output Toroidal Transformer, 50VA, 2 x 18V ac 540-4968
Product Description
Product Model: 63-7621-99Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7621-99
Product Brand: RS PRO
Features
- EN61558, IEC742. Under no circumstances should both ***s of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'. CE marked, UL506, UL1411 and UL478. Full mounting kit. Open Form Toroidal Transformers, 115-230Vac Primary, 30VA ; 50VA. Small size and low weight compared with traditional stacked laminated transformers Both primary and secondary windings may be connected in series or parallel Low induced noise (hum) Low level of radiated magnetic field Flexible leadouts, for ease of installation 100% electrical and flash testing
Spec
- Quantity:1piece
- Primary Voltage Rating : 115 V ac, 230 V ac
- Secondary Voltage Rating : 2 x 18V ac
- Power Rating : 50VA
- Number of Outputs : 2
- Secondary Current : 1.39A
- Height : 34mm
- Weight : 760g
- Diameter : 80mm
- Dimensions : 80 (Dia.) x 34mm
- Minimum Operating Frequency : 50Hz
- Maximum Operating Frequency : 60Hz
- Fixing Hole Diameter : 6mm
- CODE No.:540-4968
