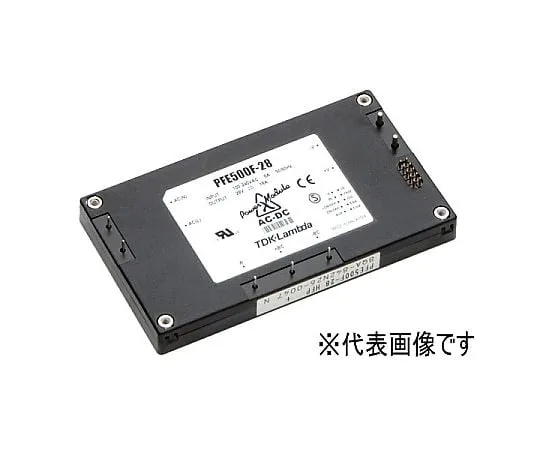

64-5669-16 AC-DC single Output Power module PFE-F Series PFE500F-28
Product Description
Product Model: 64-5669-16Product Brand: TDK-Lambda Corp […]
Contact Us
Product Details
Product Model: 64-5669-16
Product Brand: TDK-Lambda Corporation
Spec
- Output Power: 504 W
- Input voltage range: AC 85 ~ 265
- Output Voltage: 28 VDC
- Output Current: 18 A
- Efficiency (typ): 84/86% (100 VAC/200 VAC)
- Operating temperature range: -40 to + 100 (base plate temperature)
- Dimensions: 70 x 12.7 x 122 (mm)
- Remark: Mounting hole diameter with M3 tap
- High Power Factor: 0.95, High Efficiency: 86%, Input Voltage: 85 ~ 265 VAC
- Harmonic Current Regulatory Compliance (EN 61000 -3 -2)
- Large capacity 500 W to 1000 W
- Wide range of base plate temperatures: -40 to + 100 degrees C (varies with some models)
- N + 1 parallel redundant operation, series operation, remote sensing, ON/OFF controllable
- Surge capacity Normal/Common mode 6kV compatible (When installing an absorber and input filter)
- RoHS compliant
