Spec

• Output power: Po1 + Po2 = 60
• Input voltage range: DC 36 ~ 76
• Output Voltage: 3.3/2.5 VDC (CH1/CH2)
• Output Current: 15 A
• Efficiency (typ): 0.78
• Operating temperature range:?　40 to + 100 (base plate temperature) Ambient temperature =?　40 or more
• Dimensions: 57.9 x 12.7 x 61 (mm)
• CE marking (Low Voltage Directive Compliant)

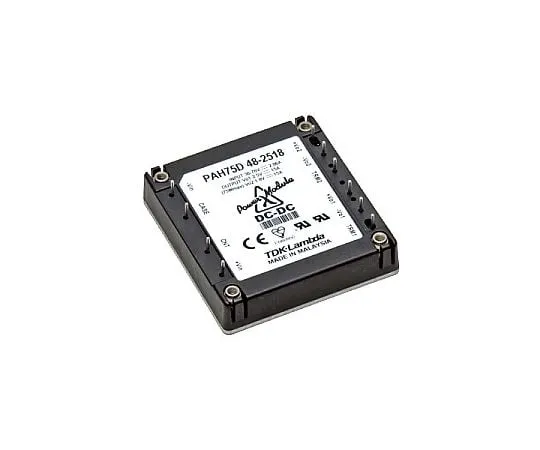

• Ultra-compact DC-DC power module
• Common package size for all models
• Wide base plate temperature: -40 C to + 100 C
• Wide input voltage range
• RoHS compliant
