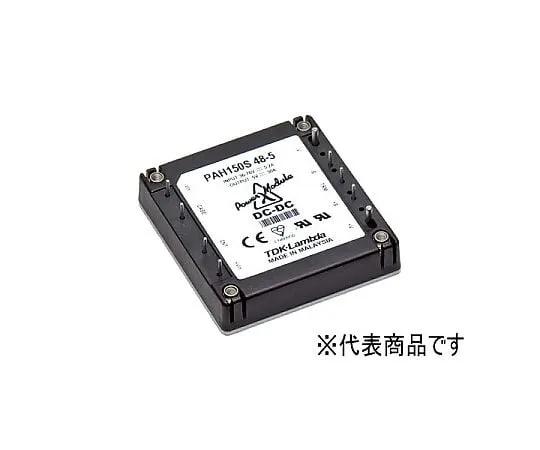

64-5668-98 DC-DC Power Module PAH Series PAH450S48-48T
Product Description
Product Model: 64-5668-98Product Brand: TDK-Lambda Corp […]
Contact Us
Product Details
Product Model: 64-5668-98
Product Brand: TDK-Lambda Corporation
Spec
- Output Power: 451.2 W
- Input voltage range: DC 36 ~ 76
- Output Voltage: 48 VDC
- Output Current: 9.4 A
- Efficiency (typ): 0.92
- Operating temperature range:? 40 to + 100 (base plate temperature) Ambient temperature =? 40 or more
- Dimensions: 61 x 12.7 x 57.9 (mm)
- Remarks: Mount hole diameter phi 3.4 +/- 0.1 (mm)
- CE marking (Low Voltage Directive Compliant)
- Ultra-compact DC-DC power module
- Common package size for all models
- Wide base plate temperature: -40 C to + 100 C
- Wide input voltage range
- RoHS compliant
