Electronic/Electrical Parts and Controll Equipments

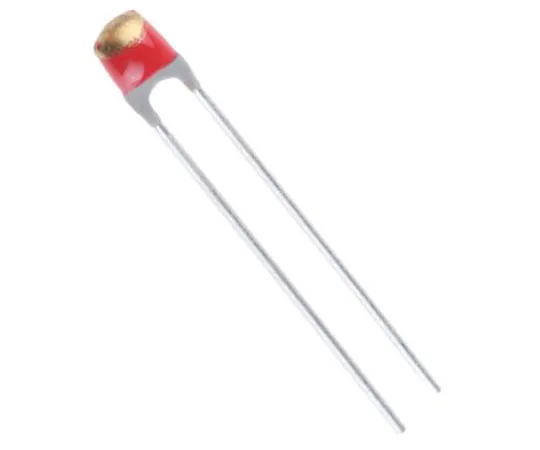

63-7619-33 BC Components NTCLE100E3222JB0 Thermistor 2.2kΩ, 3.3 x 3 x 9mm NTCLE100E3222JB0
model:
63-7619-33
brand:
BC Components
Product Description
Product Model: 63-7619-33Product Brand: BC Components F […]
Contact Us
Product Details
Product Model: 63-7619-33
Product Brand: BC Components
Features
- Vishay NTC Thermistors 0.5W 640 series. Negative Temperature Coefficient Thermistors (NTC) are semiconductor resistors whose resistance, at zero dissipation, decreases when the temperature varies either by the joule effect, with the ambient temperature or through a combination of the two. Measurement and checking of the temperature (thermometer, thermostat, sensor), current draw limiters and temperature compensation circuits for transistor circuits are some of the main applications for thermistors.
Spec
- Quantity:1bag(5pieces)
- Temperature Coefficient Type : NTC
- Thermal Coefficient : -4.38%/°C
- Thermal Time Constant : 15s
- Resistance @ 25 °C : 2.2kΩ
- Tolerance : ±5%
- Application : Compensation, Control, Measurement
- Accuracy : ±0.75%
- Length : 3.3mm
- Depth : 3mm
- Height : 9mm
- Dimensions : 3.3 x 3 x 9mm
- Minimum Operating Temperature : -40°C
- CODE No.:538-0755
