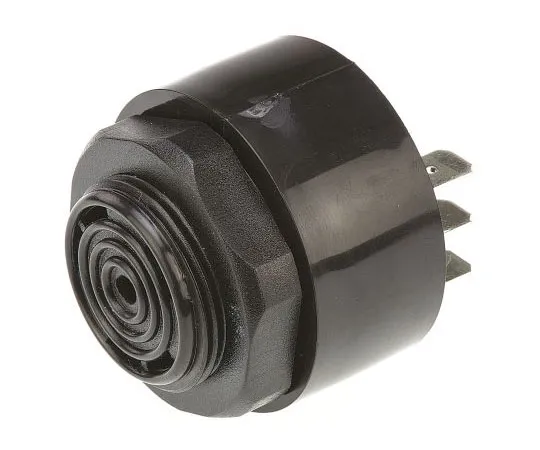

63-7617-03 RS PRO 6 → 28 V dc 88dB Panel Mount Continuous, Fast Pulse Internal Piezo Buzzer, 2300 → 3300 Hz 535-8382
Product Description
Product Model: 63-7617-03Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7617-03
Product Brand: RS PRO
Features
- Panel hole mount multifunction buzzer faston terminals. Panel hole mounting multifunction buzzer three or more 6.3 x 0.8mm faston connectors High output levels Internal circuitry for dc operation
Spec
- Quantity:1piece
- Mounting Type : Panel Mount
- Minimum Supply Voltage : 6V dc
- Maximum Supply Voltage : 28V dc
- Sound Level : 88dB
- Drive Type : Internal
- Tone Type : Continuous, Fast Pulse
- Diameter : 42.5mm
- Height : 33mm
- Dimensions : 42.5 x 33mm
- Minimum Operating Temperature : -30°C
- Maximum Operating Temperature : +85°C
- Maximum Frequency : 3.3kHz
- Supply Current : 16mA
- CODE No.:535-8382
