Electronic/Electrical Parts and Controll Equipments

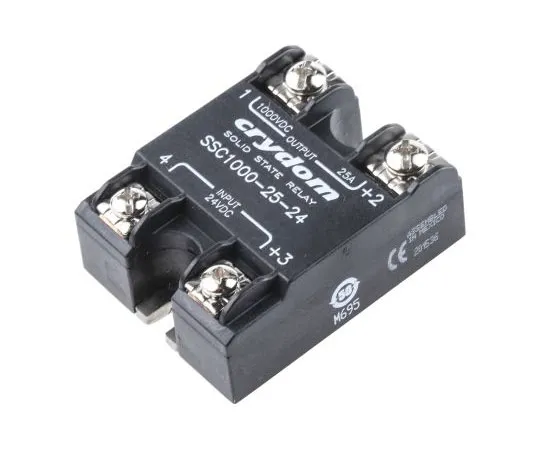

63-7616-54 Sensata / Crydom 25 A Solid State Relay, Surface Mount, Transistor, 1000 V Maximum Load SSC1000-25-24
model:
63-7616-54
brand:
Sensata / Crydom
Product Description
Product Model: 63-7616-54Product Brand: Sensata / Crydo […]
Contact Us
Product Details
Product Model: 63-7616-54
Product Brand: Sensata / Crydom
Features
- Derating will limit the maximum load current at temperatures above 25 °C. Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet. 7 to 100A dc Switching. SSRs for controlling dc loads Extremely long operating life MOSFET technology relays can be connected in parallel to switch higher load currents Applications include dc motors, lamps, solenoids Terminal Type Screw; Saddle Clamp Operating Temperature Range -30 to +80°C Dimensions: H22.9 x W45.7 x D58.4 Max. Input to output Capacitance: 50pF Panel Mount Internal over voltage protection for the SSC Series
Spec
- Quantity:1piece
- Minimum Load Current : 20 mA
- Maximum Load Current : 25 A
- Mounting Type : Surface Mount
- Maximum Load Voltage : 1000 V
- Maximum Control Voltage : 28 V
- Output Device : Transistor
- Dimensions : 58.4 x 45.7 x 22.9mm
- Maximum Operating Temperature : +80°C
- CODE No.:535-3056
