Features

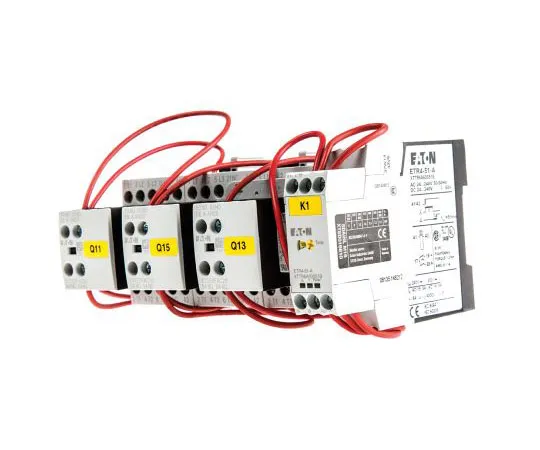

• FLC figures quoted are maximum. The overload specified has been determined by applying the following formula: 0.58 x motor FLC.,Allow additional clearance dimensions for the wiring bar above and below the starter.,Thermal overload ZB12-16 is not currently stocked. The starters which *** the X Start range of components are not compatible with DILM components. Star Delta - Open Chassis. Open chassis Star Delta starter for *** within customised enclosures, enabling quick and easy installation and direct mounting onto 35mm DIN rail.,Manufactured using readily available Moeller components which conform to the latest IEC 947 standards and pre-wired to accept the Moeller Z00 or ZB thermal overloads which offer single phasing sensitivity to IEC 947-4.,Star Delta Open Chassis starters comprise of a Main, Delta and Star contactors, Star Delta timer (adjustable between 0 and 30 seconds) and circuit diagram. Overload relay is not supplied and must be ordered separately Manufacturer part numbers beginning with SDAINL 00AM , 0M , 0AM, 1M , M12 , M16 , M22 *** ZB12 overloads (typical example stock no. ; 493-1239 493-1239 ) Manufacturer part numbers beginning with SDAINL M30 , M45 and M55 *** ZB32 overloads (typical example stock no. ; 493-1245 493-1245 ) Terminal protection to IP20 Operating temperature range -25 to +40°C 7.5kW (SDAINL00AM) : H77 x W162 x D112mm 12.5kW ; 18.5kW (SDAINL0M ; SDAINL0AM) : H91 x W162 x D117mm 22kW (SDAINL1M) : H98 x W188 x D135mm 5.5 to 11kW (SDAINLM12 to SDAINLM22) : H68 x W158 x D125.2mm 15, 22 ; 30kW (SDAINLM30 to SDAINLM55) : H85 x W158 x D147.3mm
