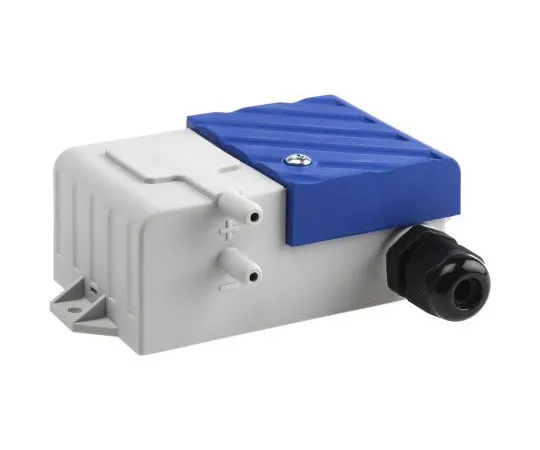

63-7616-29 Gems Sensors Differential for Air, Non-Conductive Gas Pressure Sensor, 1000Pa Max Pressure Reading , 24 V ac/dc 526610CLBACTI
Product Description
Product Model: 63-7616-29Product Brand: Gems Sensors Fe […]
Contact Us
Product Details
Product Model: 63-7616-29
Product Brand: Gems Sensors
Features
- Differential Pressure Transmitter Series 5266. Choice of output types Wetted parts compatible with air or non-conductive gases 6.2mm tube fittings Stainless steel welded sensor 1% full scale accuracy -18°C to +65°C compensated temperature range 1s response time Electrical connection via terminal strip Dimensions: L100xD39xH89mm Note, output is bi-directional.
Spec
- Quantity:1piece
- Pressure Reading Type : Differential
- Minimum Pressure Reading : -1000Pa
- Maximum Pressure Reading : 1000Pa
- Accuracy : ±1 %
- Output Type : Analogue
- Media Measured : Air, Non-Conductive Gas
- Analogue Output : 0 → 10 V
- Response Time : 1 s
- Supply Voltage : 24 V ac/dc
- Housing Material : Stainless Steel
- Maximum Operating Temperature : +65°C
- CODE No.:535-1252
