Electronic/Electrical Parts and Controll Equipments

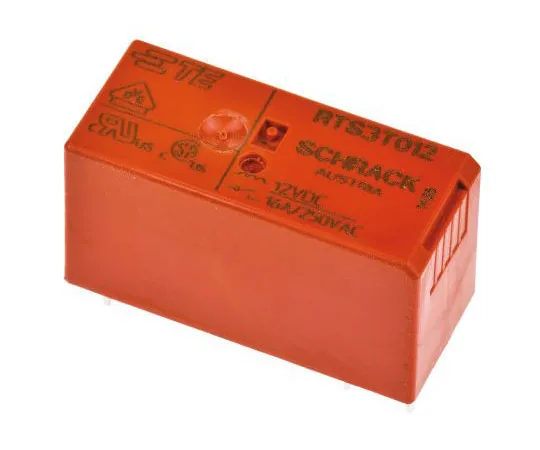

63-7615-94 TE Connectivity SPNO PCB Mount Non-Latching Relay, 12V dc Coil 16 A RTS3T012
model:
63-7615-94
brand:
TE Connectivity
Product Description
Product Model: 63-7615-94Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-7615-94
Product Brand: TE Connectivity
Features
- UL, CSA, VDE. RT1 Series - High Inrush Relays / Bistable. 16A @ 250Vac making and breaking capacity acc. to IEC 60669-1 Reinforced insulation Creepage & clearance 10mm 5mm pinning Applications include lighting systems, movement sensors, filament and incandescent lamp loads, motors etc
Spec
- Quantity:1piece
- Coil Voltage : 12V dc
- Contact Configuration : SPNO
- Switching Current : 16 A
- Terminal Type : Through Hole
- Coil Resistance : 360 Ω
- Application : Power
- Length : 29mm
- Depth : 12.7mm
- Height : 15.7mm
- Dimensions : 29 x 12.7 x 15.7mm
- Maximum Operating Temperature : +85°C
- CODE No.:534-9489
