Electronic/Electrical Parts and Controll Equipments

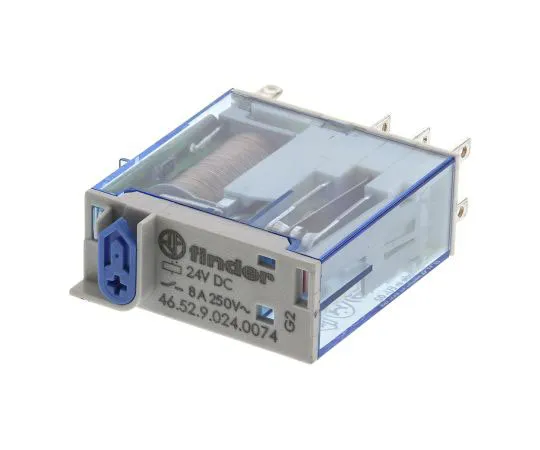

63-7615-84 Finder46 Series DPDT Non-Latching Relay Plug In, 24V dc Coil, 8A 46.52.9.024.0074
Product Description
Product Model: 63-7615-84Product Brand: Finder Features […]
Contact Us
Product Details
Product Model: 63-7615-84
Product Brand: Finder
Features
- UL recognised component for Canada and US. 46 Series Relay with LED. Mechanical flag indicator, lockable test button and LED Coil to contact isolation 6000Vac (1.2 / 50μs) 8mm creepage and clearance distance coil to contact Contact material: AgNi Ambient temperature range: -40 to +70°C Dimensions (mm): H 32.8, W 29, D12.4 DIN rail sockets and Flange mount adaptors for Faston connection available separately
Spec
- Quantity:1piece
- Coil Voltage : 24V dc
- Coil Power : 500mW
- Coil Resistance : 1.2 kΩ
- Isolation Coil To Contact : 6kV
- Contact Configuration : DPDT
- Mounting Type : Plug In
- Switching Current : 8A
- Terminal Type : Screw
- Number of Poles : 2
- Maximum Switching Voltage AC : 440V ac
- Height : 32.8mm
- CODE No.:534-5336
