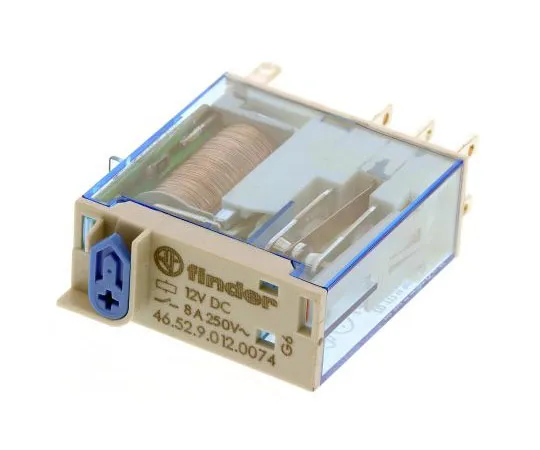

63-7615-83 Finder46 Series DPDT Non-Latching Relay PCB Mount, 12V dc Coil, 8A 46.52.9.012.0074
Product Description
Product Model: 63-7615-83Product Brand: Finder Features […]
Contact Us
Product Details
Product Model: 63-7615-83
Product Brand: Finder
Features
- UL recognised component for Canada and US. 46 Series Relay with LED. Mechanical flag indicator, lockable test button and LED Coil to contact isolation 6000Vac (1.2 / 50μs) 8mm creepage and clearance distance coil to contact Contact material: AgNi Ambient temperature range: -40 to +70°C Dimensions (mm): H 32.8, W 29, D12.4 DIN rail sockets and Flange mount adaptors for Faston connection available separately
Spec
- Quantity:1piece
- Coil Voltage : 12V dc
- Coil Power : 500mW
- Coil Resistance : 300 Ω
- Isolation Coil To Contact : 6kV
- Contact Configuration : DPDT
- Mounting Type : PCB Mount
- Switching Current : 8A
- Terminal Type : PCB Pin
- Number of Poles : 2
- Maximum Switching Voltage AC : 250V ac
- Maximum Switching Voltage DC : 15V dc
- Length : 29mm
- CODE No.:534-5320
