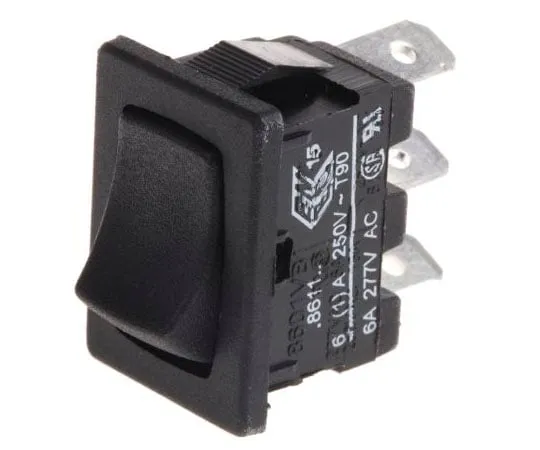

63-7615-41 Arcolectric Single Pole Single Throw (SPST), Momentary Rocker Switch Panel Mount H8611VBAAB
Product Description
Product Model: 63-7615-41Product Brand: Arcolectric Fea […]
Contact Us
Product Details
Product Model: 63-7615-41
Product Brand: Arcolectric
Features
- ENEC, UL, CSA. Stk no ; 318-064 318-064 features red illumination, stk no. ; 318-070 318-070 features green illumination. Curved Rocker Switches. The single throw types have 3mm contact separation Electrical life: >10 ;sup>4 ;/sup> operations at full load Maximum operating temperature: +90°C Connection is by 4.8 ;font face:"symbol">´ ;/font>0.8mm blade terminals Dimensions: H21, W15 (SP), W24 (DP), depth behind panel 12.5 (19.9 with terminals), max. panel thickness 3 mm
Spec
- Quantity:1piece
- Contact Configuration : Single Pole Single Throw (SPST)
- Switch Operation : Momentary
- Panel Cut Out Width : 12.9mm
- Panel Cut Out Height : 19.4mm
- Contact Current Rating : 6 A @ 277 V ac
- Mounting Type : Panel Mount
- Terminal Type : Quick Connect
- Panel Cut Out Size : 19.4 x 12.9mm
- CODE No.:533-3024
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-6941-97 Connectors for Electric Vehicless 1 Row 1 Pole 200 A 1000 V ac/dc Female Orange C 10 -730190 - 0501 SLPPC50BSO1
model: 63-6941-97
brand: Amphenol
Electronic/Electrical Parts and Controll Equipments

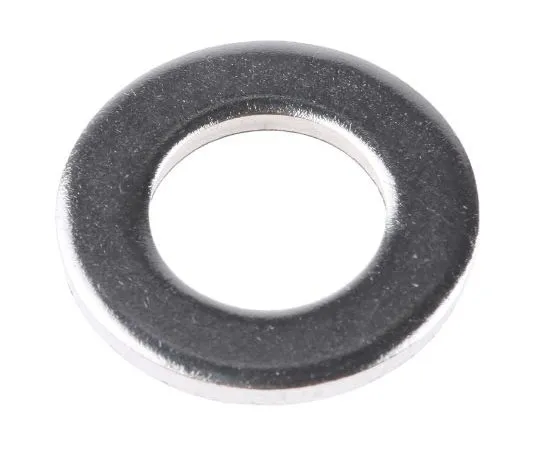

63-7997-94 Stainless Steel Plain Washer, 2.5mm Thickness, M12 (Form A), A4 316 797-6367
model: 63-7997-94
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

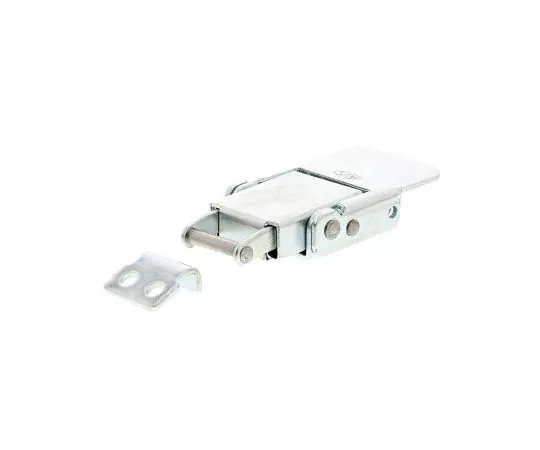

63-7765-39 Steel Zinc Plated Toggle Latch,Spring Loaded, 61 x 29 x 11mm 726-4147
