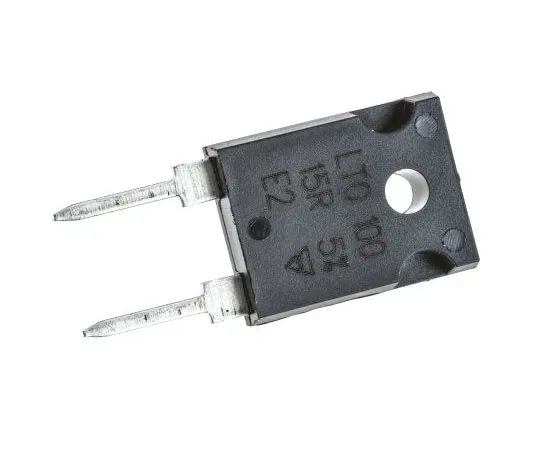

63-7614-64 Vishay 15Ω 100W Fixed Resistor ±5% ±150ppm/°C LTO100F15R00JTE3
Product Description
Product Model: 63-7614-64Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-7614-64
Product Brand: Vishay
Features
- LTO100 Series 100W Thick Film Power Resistors. LTO100 series 1000W thick film power resistors with a compact TO-247 package and a 100W at 25°C case temperature heatsink mounted. These LTO100 series 100W power resistors have a direct ceramic mounting on heatsink, a broad resistance range of 0.015 Ω to 1 MΩ, are non inductive and are AEC-Q200 qualified. Thick film ceramic resistors 100 Watt at 25°C case temperature heatsink mounted Direct mounting ceramic on heatsink TO-247 package Isolated case Adjusted by sand trimming to reduce hot spots
Spec
- Quantity:1set(30pieces)
- Resistance : 15Ω
- Power Rating : 100W
- Tolerance : ±5%
- Technology : Thick Film
- Series : LTO100
- Package/Case : TO-247
- Minimum Operating Temperature : -55°C
- CODE No.:167-9469
