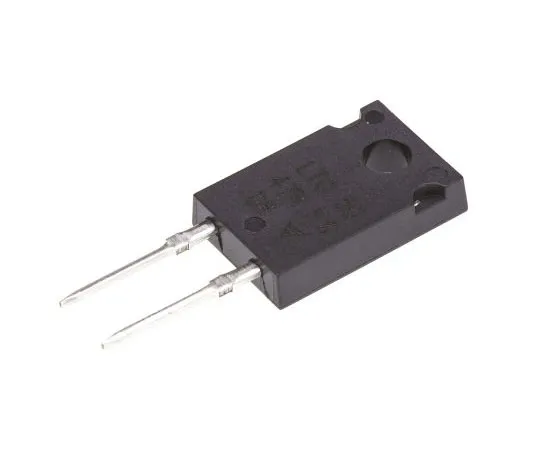

63-7614-57 Vishay 47Ω 50W Fixed Resistor ±5% ±150ppm/°C LTO050F47R00JTE3
Product Description
Product Model: 63-7614-57Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-7614-57
Product Brand: Vishay
Features
- LTO50 Series 50W Thick Film Power Resistors. LTO50 series 50W thick film power resistors with a compact TO-220 package and a 50W at 25°C case temperature heatsink mounted. These LTO50 series 50W power resistors have a direct ceramic mounting on heatsink, a broad resistance range of R010 to 550K, an isolated case and are non-inductive.. Thick film ceramic resistors 50 Watt at 25°C case temperature heatsink mounted Direct mounting ceramic on heatsink TO-220 package Isolated case Adjusted by sand trimming to reduce hot spots
Spec
- Quantity:1set(50pieces)
- Resistance : 47Ω
- Power Rating : 50W
- Tolerance : ±5%
- Technology : Thick Film
- Series : LTO50
- Package/Case : TO-220
- Minimum Operating Temperature : -55°C
- CODE No.:167-9610
