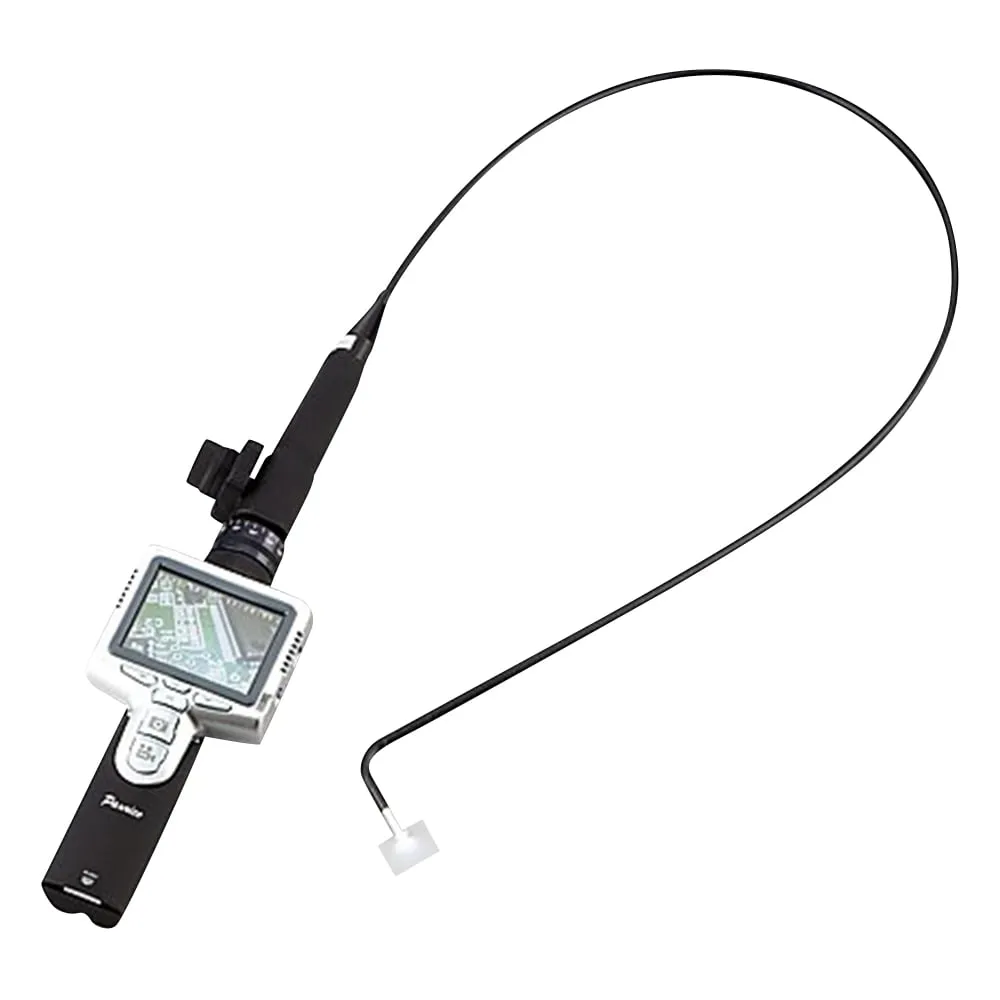

1-571-21 Fiber Scope (Movable Tip) PST-2486-ESA-R2
Product Description
Product Model: 1-571-21Product Brand: AS ONE Corporatio […]
Contact Us
Product Details
Product Model: 1-571-21
Product Brand: AS ONE Corporation
Features
- With the flexible cable, it can be checked even in small gaps.
- Side view is also possible using the attached mirror head.
- The tip is movable and can be adjusted to various angles (left and right 270°).
Spec
- Size (mm): 100 x 500 x 200
- Weight (g): 420
- Imaging device: CMOS sensor
- Resolution: 640 x 480 pixels
- Depth of field: 20~70 mm
- Frame rate: 30fps (MAX)
- Light Source: White LED x 6
- Camera head diameter: Φ5.5 mm
- Cable length: 1 m
- Memory: SD card (4GB)
- With Analog Video Terminal Output
- Power: Rechargeable lithium ion battery or included AC adaptor (100 VAC 50/60Hz)
- Dustproof/Waterproof: IP67 (Excluding Body)
- Accessories: Flexible Cable, AC Adapter (1m), SD Card (4GB), Carrying Case
