Features

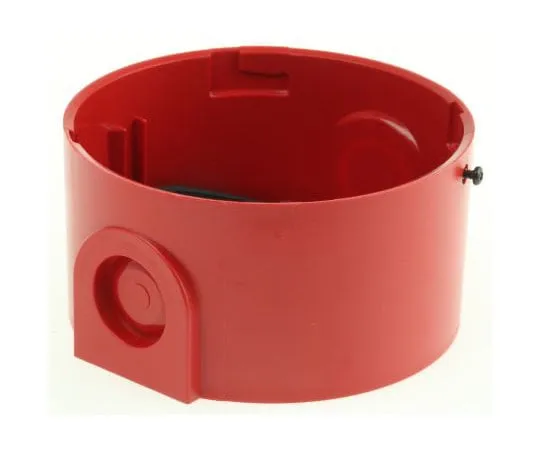

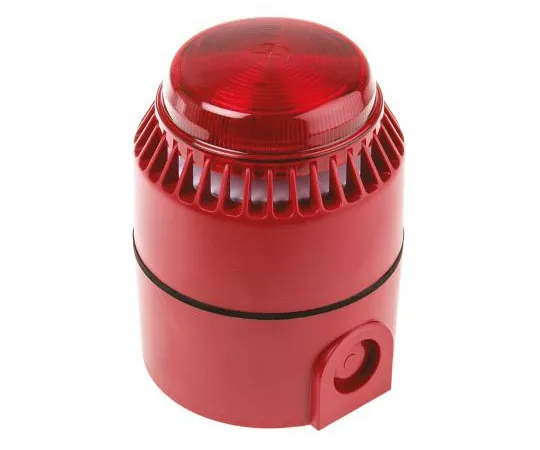

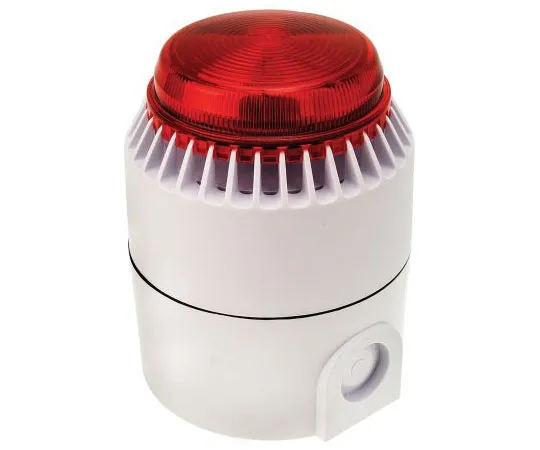

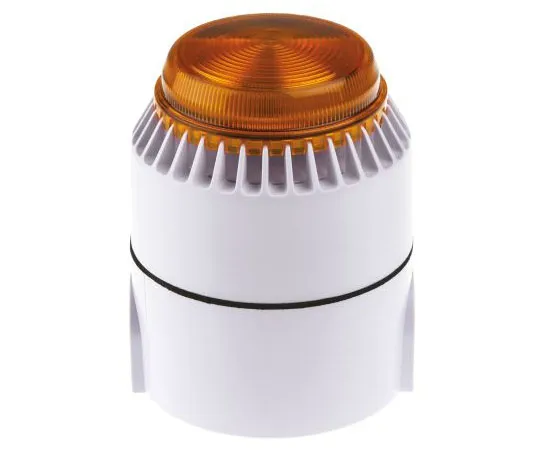

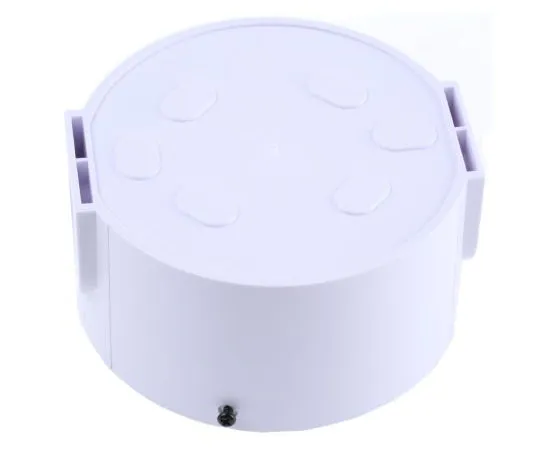

• This product exceeds the requirements of En54-3 but is not designed to meet EN54-23. Where the Construction Product Directive or Regulation (CPD/CPR) is a country requirement, it cannot be ***d, legally, for the purpose of alerting room occupants to a Fire Alarm condition. For Countries where CPD/CPR does not apply, this **** should be disregarded. Stock nos. ; 530-6038 530-6038 , ; 530-6016 530-6016 , ; 529-4474 529-4474 , ; 529-4452 529-4452 and ; 529-4468 529-4468 are VdS approved. The sounder and beacon elements for stock nos. ; 529-4474 529-4474 and ; 529-4468 529-4468 are individually wired which enables them to be controlled separately. Sounder/Xenon Beacon Combinations. Sounder/Xenon beacon combinations with a diameter of 93mm and height of 121mm as supplied. If retrofitted with a shallow base the height reduces to 92mm. The Xenon flashes once per second with a flash energy of 0.7 Joules. Operating temperature range -10°C to +55°C. 22 tones ABS cases and polycarbonate freznel lens 20dB volume control 110dB sound rating IP65 rated Reverse polarity protected IP65 protection when ***d with deep base. Additional Feature:. Stock nos. ; 530-6038 530-6038 , ; 530-6016 530-6016 , ; 529-4474 529-4474 , ; 529-4452 529-4452 and ; 529-4468 529-4468 are EN54 part 3 compliant (stock no. ; 529-4452 529-4452 is also CPD compliant)
