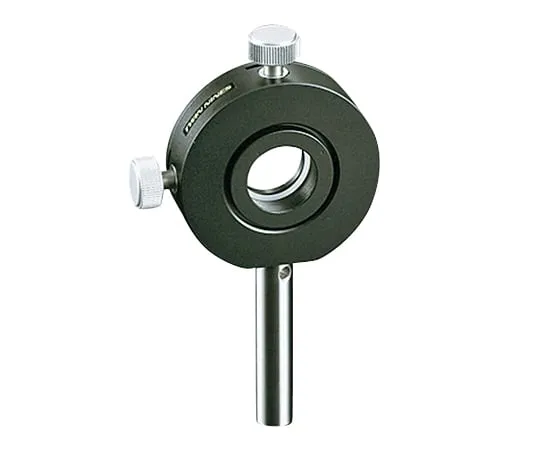

3-5140-01 Lens Holder (Centering Method) for φ25mm AL-25
model:
3-5140-01
category:
dissectiontoolsandsupplies
Product Description
Product Model: 3-5140-01 Features Suitable for fixing c […]
Contact Us
Product Details
Product Model: 3-5140-01
Features
- Suitable for fixing circular element. Allows for centering in YZ direction in relation to light axis.
- Adopts fine adjustment screw for adjustment（pitch：0.25*mm*）.
Spec
- Model number: AL-25
- Applicable element diameter (mm): φ25
- Element effective diameter (mm): φ22
- Weight (g): 180
- Material: Aluminum, Brass (Surface anodic oxide coating, chrome plating process)
- Applicable element thickness: Maximum 15mm
- Movement amount: φ3mm
- With stainless steel pole (φ12 x 60mm)
