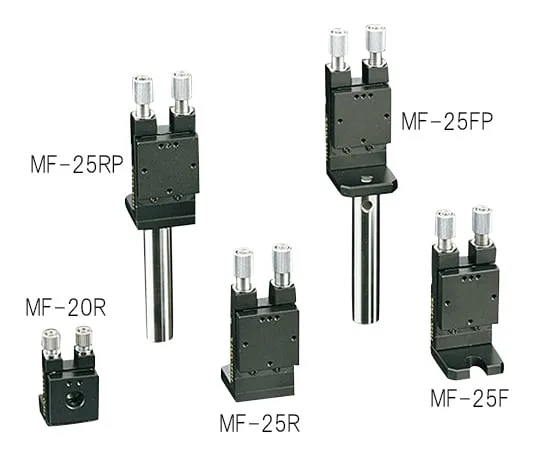

3-5138-09 Mirror Holder (Kinematic Type) for *20, φ20mm MF-20R
dissectiontoolsandsupplies

3-5138-09 Mirror Holder (Kinematic Type) for *20, φ20mm MF-20R

model: 3-5138-09

Product Description

Product Model: 3-5138-09 Features Employed kinematic me […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 3-5138-09

Features

  • Employed kinematic mechanism allows this product to move around supporting point.
  • Adopts fine adjustment screw for adjustment(pitch:0.25*mm*) to allow for the holder to be operated from rear and top.
  • Available in fixed models and models with φ12 pole. Orientation(front and rear) can be selected.

Spec

  • Model number: MF-20R
  • Applicable element (mm): □20・φ20
  • Fine resolution (°/Rotation): Approx. 1.02/1.02
  • Weight (g): 30
  • Material: Aluminum, Brass (Surface anodic oxide coating, chrome plating process)
  • Angle adjustment: ±3°
  • Element mounting position: Back
  • Operation position: Top
