Features

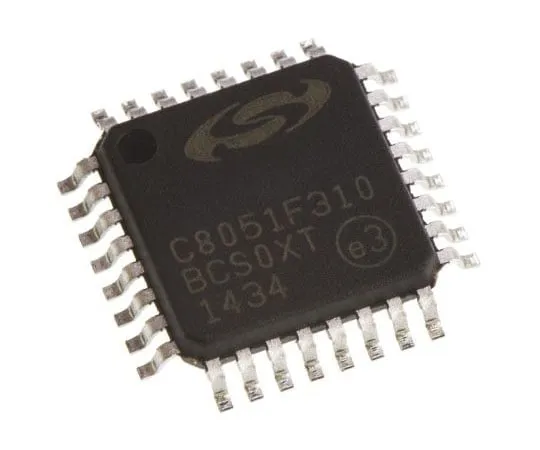

• C8051F31x Microcontrollers, Silicon Labs. The Silicon Labs C8051F31x family of small form factor mixed-signal microcontrollers (MCU) with an 8-bit CPU capable of up to 25 MIPS. Enable, disable and configure all the analogue and digital peripherals using the firmware. Flash memory can be reprogrammed even in-circuit, providing non-volatile data storage, and also allowing field upgrades of the 8051 firmware. They are specified for 2.7 V to 3.6 V operation over the industrial temperature range (-45°C to +85°C). The C8051F310/2/4 are available in a 32-pin LQFP package, the C8051F311/3/5 in a 28-pin QFN package and the C8051F316/7 in a 24-pin QFN package. - 8051-compatible CIP-51 microcontroller core (up to 25 MIPS) - In-system, full-speed, non-intrusive debug interface (on-chip) - 10-bit (C8051F310/2/3/6) 200 ksps 25-channel single-***ed/differential ADC with analogue multiplexer - Two analogue comparators - 8 kB (C8051F312/3/4/5) or 16 kB (C8051F310/1/6/7) of in-system programmable FLASH memory - 1280 bytes of on-chip RAM - SMBus/I2C, and enhanced UART and SPI serial interfaces implemented in hardware - Four, general purpose 16-bit Timers - Programmable Counter/Timer Array with five capture/compare modules - Calibrated 24.5 MHz Oscillator - On-chip Watchdog Timer, VDD Monitor, and Temperature Sensor
