Electronic/Electrical Parts and Controll Equipments

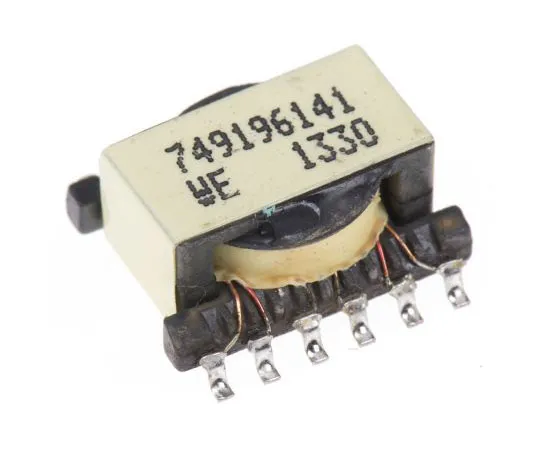

63-7610-05 SMPS Transformer, 8.5μH 749196141
model:
63-7610-05
brand:
Wurth Elektronik
Product Description
Product Model: 63-7610-05Product Brand: Wurth Elektroni […]
Contact Us
Product Details
Product Model: 63-7610-05
Product Brand: Wurth Elektronik
Features
- Power levels of between 1 and 50 Watts can be transformed with the WE-FLEX series transformers. They can be ***d at switching frequencies of up to 1 MHz. WE-FLEX Transformers. 3x2 windings Isolation voltage 500Vdc Low stray inductance Operating temperature: -40°C to +125°C Applications include: flyback, forward, push-pull, step-down, step-up, SEPIC converters
Spec
- Quantity:1piece
- Inductance : 8.5µH
- Secondary Current : 550mA
- Length : 12.9mm
- Width : 9.2mm
- Depth : 6.2mm
- Dimensions : 12.9 x 9.2 x 6.2mm
- Isolation Voltage : 500V dc
- Leakage Inductance : 0.21µH
- CODE No.:522-6027
