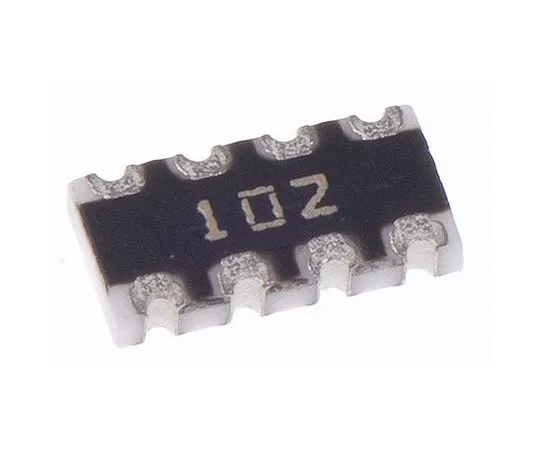

63-7609-89 Bourns CAT16 Series 1kΩ ±5% Isolated SMT Resistor Array, 4 Resistors, 0.25W total 1206 (3216M) package Concave CAT16-102J4LF
Product Description
Product Model: 63-7609-89Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-7609-89
Product Brand: Bourns
Features
- CAT16 Series Concave Chip Resistor Arrays. Concave terminals Resistance tolerance ±5 % Resistance range: 10 ohms to 1 megohm. Bourns CAT16 Series Chip Resistor Arrays available with either 4 or 8 isolated elements.
Spec
- Quantity:1set(5000pieces)
- Resistance : 1kΩ
- Number of Resistors : 4
- Package/Case : 1206 (3216M)
- Power Rating : 0.25W
- Termination Style : Concave
- Tolerance : ±5%
- Case Style : Moulded
- Power Rating per Resistor : 0.062W
- Circuit Designator : ISOL
- Length : 3.2mm
- Depth : 1.55mm
- Height : 0.5mm
- Dimensions : 3.2 x 1.55 x 0.5mm
- Series : CAT16
- Number of Terminals : 8
- CODE No.:167-3554
