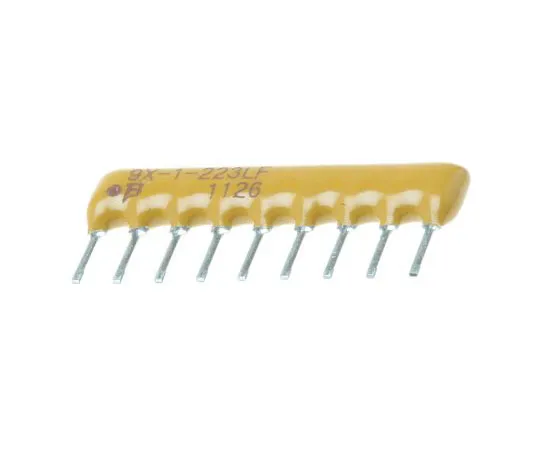

63-7609-48 Bourns Bussed Resistor Network 22kΩ ±2% 8 Resistors, 1.13W Total, SIP package 4600X Through Hole 4609X-101-223LF
Product Description
Product Model: 63-7609-48Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-7609-48
Product Brand: Bourns
Features
- 8-Bussed Resistors. From Bourns, the 4600X series of 8-bussed array resistors have a broad resistance range and are suitable for a range of applications. Constructed from a flame retardant epoxy resin body, these network resistors offer protection against shock, heat and moisture. Features and benefits:. Low profile. Range of pin packages enables you to be flexible with your designs. Marking on contrasting background enables permanent identification. Resistance options available from 10 Ω to 10 MΩ
Spec
- Quantity:1bag(200pieces)
- Resistance : 22kΩ
- Number of Resistors : 8
- Tolerance : ±2%
- Power Rating : 1.13W
- Power Rating per Resistor : 0.2W
- Package/Case : SIP
- Case Style : Conformal
- Circuit Designator : BUS
- Temperature Coefficient : ±100ppm/°C
- Termination Style : Through Hole
- Depth : 2.49mm
- Height : 5.08mm
- Length : 22.81mm
- Maximum Operating Temperature : +125°C
- Number of Terminals : 9
- CODE No.:167-3308
