Electronic/Electrical Parts and Controll Equipments

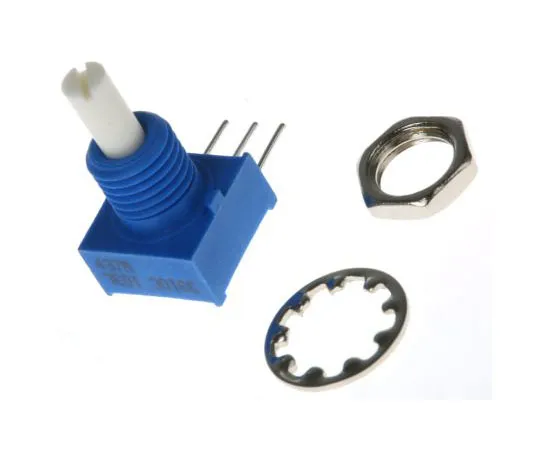

63-7608-45 Bourns 1 Gang Rotary Conductive Plastic Potentiometer with a 3.18 mm Dia. Shaft, 10kΩ, ±20%, 0.25W, Linear 3310C-001-103L
Product Description
Product Model: 63-7608-45Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-7608-45
Product Brand: Bourns
Features
- 9mm 3310C Series In-Line Pin. Compact package - saving board and panel space Sealed to withstand immersion board washing Moulded body with built-in standoffs, Panel and PCB mountable Plastic bushing and plastic shaft. Supplied with metal lock washer and nut Temperature -55 to +125 °C
Spec
- Quantity:1set(50pieces)
- Potentiometer Type : Rotary
- Maximum Resistance : 10kΩ
- Number of Gangs : 1
- Number of Turns : 1
- Power Rating : 0.25W
- Electrical Taper : Linear
- Element Material : Conductive Plastic
- Termination Style : PC Pin
- Shaft Length : 12.7mm
- Shaft Diameter : 3.18 mm
- Tolerance : ±20%
- Series : 3310
- CODE No.:167-3506
