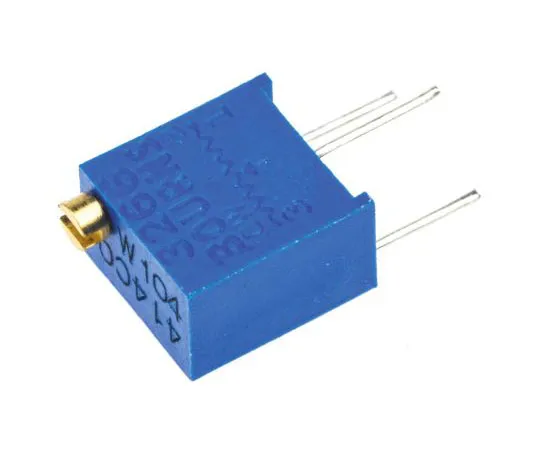

63-7607-97 100kΩ Through Hole Trimmer Potentiometer 0.25W Top Adjust Bourns 3266 Series 3266W-1-104LF
Product Description
Product Model: 63-7607-97Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-7607-97
Product Brand: Bourns
Features
- 6mm in. 250mW Top Adjust 3266W Series. Bourns® 3266 Series 1/4" Square Multiturn Cermet Trimming Potentiometer (Trimpot®). Small size - high packing density Sealed to withstand immersion board washing Double chevron shaft seal Moulded body with built in stand-offs Wiper idles at ***s of travel
Spec
- Quantity:1set(50pieces)
- Maximum Resistance : 100kΩ
- Mounting Type : Through Hole
- Number of Turns : 12
- Orientation : Top Adjust
- Power Rating : 0.25W
- Series : 3266
- Termination Style : Pin
- Tolerance : ±10%
- Temperature Coefficient : ±100ppm/°C
- Shaft Diameter : 1.78 mm
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +150°C
- CODE No.:167-3350
