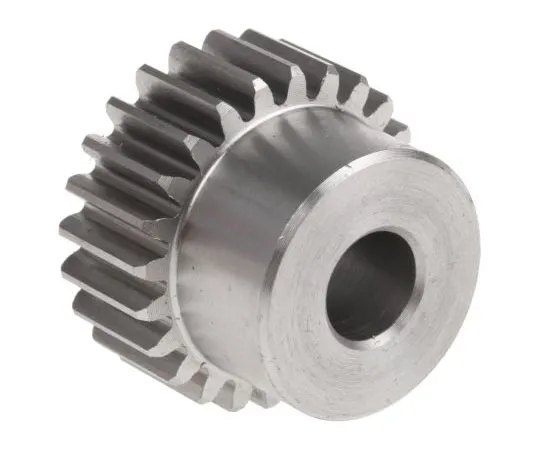

63-7607-27 RS PRO Stainless Steel 24 Teeth Spur Gear, 24mm Pitch Diam. , 20mm Hub Diam. , 8 → 13mm Bore Diam. 521-6749
Product Description
Product Model: 63-7607-27Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7607-27
Product Brand: RS PRO
Features
- Metric Spur Gears Stainless Steel. Stainless steel spur gears providing a range of gear ratios. All gears are module 1.0. Made from SUS303 (JIS 4051) stainless steel Tensile strength 510N/mm² Pressure angle 20° Dimension E 10mm
Spec
- Quantity:1piece
- Module : 1
- Number of Teeth : 24
- Material : Stainless Steel
- Bore Diameter : 8 → 13mm
- Hub Diameter : 20mm
- Pitch Diameter : 24mm
- Face Width : 10mm
- CODE No.:521-6749
