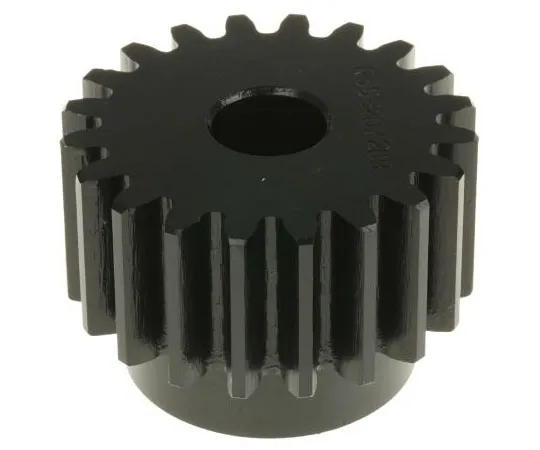

63-7607-14 RS PRO Steel 20 Teeth Spur Gear, 40mm Pitch Diam. , 32mm Hub Diam. , 12mm Bore Diam. 521-6597
Product Description
Product Model: 63-7607-14Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7607-14
Product Brand: RS PRO
Features
- DIN Standard - DIN 867, DIN 3962, DIN 3963, Grade / Quality 9 or equivalent. SSN10/10B and SSN10/12B are hobbed type pinions with cutter runout after the 5 mm gear face width. Steel Metric Spur Gears. RS Pro high quality steel spur gears in a range of gear ratios. Ideally ***d for speed reduction or increase, torque multiplication, resolution and accuracy in positioning systems. Features and Benefits. Steel EN8 (080M40/080M46) or equivalent Tensile strength: 569N/mm ;sup>2 ;/sup> (min.) 20° pressure angle
Spec
- Quantity:1piece
- Module : 2
- Number of Teeth : 20
- Material : Steel
- Bore Diameter : 12mm
- Hub Diameter : 32mm
- Pitch Diameter : 40mm
- Face Width : 20mm
- CODE No.:521-6597
