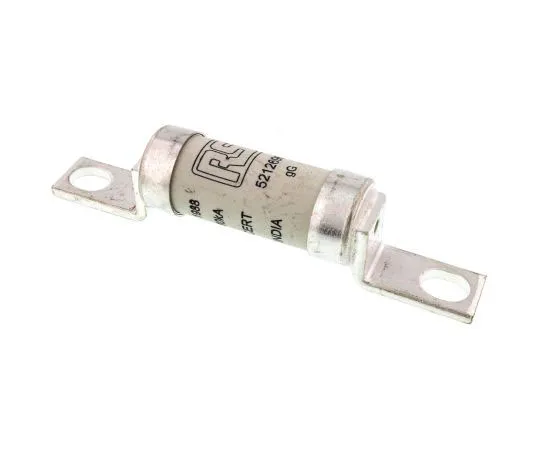

63-7606-20 RS PRO, 80A, A4, British Standard F***, gG, 550V ac 521-2696
Product Description
Product Model: 63-7606-20Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7606-20
Product Brand: RS PRO
Features
- HRC F***s. Breaking capacity 80kA at 415Vac and 40kA at 250Vdc (bolted connection types) (E1 type 16·5kA at 240Vac) Rated at 415Vac/250Vdc (bolted connection types) (E1 type 240Vac) Electricity Supply Authorities, Lloyd ‘s Register of Shipping Approvals and ASTA 20 certified
Spec
- Quantity:1piece
- Current Rating : 80A
- F*** Size : A4
- Voltage Rating : 550V ac
- F*** Standard : BS 88, IEC 269
- Fixing Centres : 94mm
- Application Category : gG
- Tag Width : 14.3mm
- High Rupture Capacity : Yes
- Overall Length : 110mm
- Body Diameter : 21mm
- Body Length : 58.5mm
- Body Height : 58.5mm
- F*** Dimensions : 21 x 110mm
- CODE No.:521-2696
