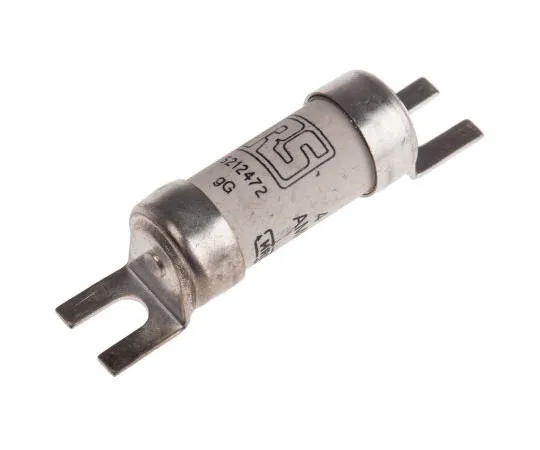

63-7606-06 RS PRO 4A A1 British Standard F***, gG, 550V ac 521-2472
Product Description
Product Model: 63-7606-06Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7606-06
Product Brand: RS PRO
Features
- HRC F***s. Breaking capacity 80kA at 415Vac and 40kA at 250Vdc (bolted connection types) (E1 type 16·5kA at 240Vac) Rated at 415Vac/250Vdc (bolted connection types) (E1 type 240Vac) Electricity Supply Authorities, Lloyd ‘s Register of Shipping Approvals and ASTA 20 certified
Spec
- Quantity:1bag(5pieces)
- F*** Standard : BS 88, IEC 60269
- F*** Size : A1
- Current Rating : 4A
- Voltage Rating : 550V ac
- High Rupture Capacity : Yes
- Body Diameter : 13.8mm
- Overall Length : 55mm
- Tag Width : 11.2mm
- Body Height : 34.6mm
- Body Length : 34.6mm
- Fixing Centres : 44.5mm
- Application Category : gG
- F*** Dimensions : 13.7 (Dia.) x 55.2mm
- CODE No.:521-2472
