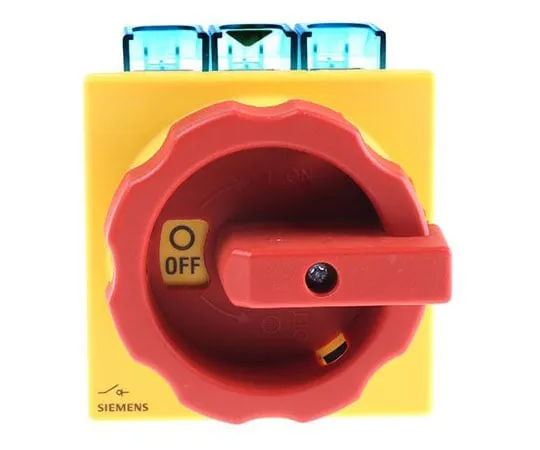

63-7605-71 3 Pole Panel Mount Non F***d Isolator Switch, 125 A, 45 kW, IP65 3LD2804-0TK53
Product Description
Product Model: 63-7605-71Product Brand: Siemens Feature […]
Contact Us
Product Details
Product Model: 63-7605-71
Product Brand: Siemens
Features
- Sentron LD Disconnector. Main and emergency stop switch Handle available in black or red/yellow (emergency stop) Accepts 3 padlocks Front panel seal IP65 Side feed with cover Screw or DIN rail assembly
Spec
- Quantity:1piece
- Number of Poles : 3
- Maximum Current : 125 A
- Mounting Type : Panel Mount
- Power Rating : 45 kW
- IP Rating : IP65
- Accepts Padlocks : Yes
- Voltage Rating : 690 V ac
- Electrical Phase : 3
- Switch Rating : 6000 V
- Length : 90mm
- Width : 90mm
- Depth : 61mm
- Terminal Type : Screw
- CODE No.:518-7461
