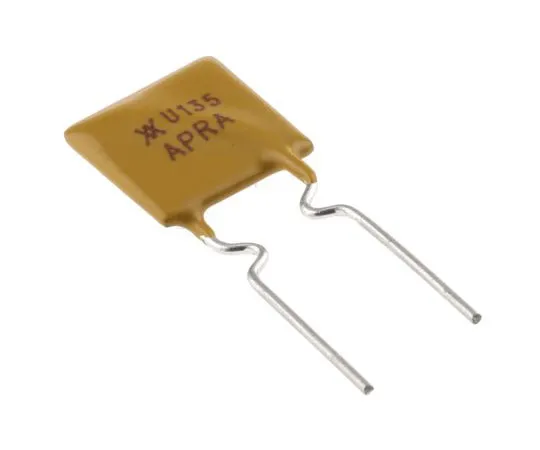

63-7604-95 Littelf*** 1.35A Hold current, Radial Leaded PCB Mount Resettable F***, 30V dc RUEF135
Product Description
Product Model: 63-7604-95Product Brand: Littelfuse Feat […]
Contact Us
Product Details
Product Model: 63-7604-95
Product Brand: Littelfuse
Features
- PolySwitch™ RUEF ; RGEF Series
Spec
- Quantity:1bag(10pieces)
- Lead Orientation : Radial
- Trip Current : 2.7A
- Time to Trip : 7.3s
- Hold Current : 1.35A
- Voltage Rating : 30V dc
- Maximum Current : 100 A
- Minimum Resistance : 0.04Ω
- Maximum Resistance : 130mΩ
- Power Dissipation : 0.8W
- Body Height : 13.5mm
- Body Length : 8.9mm
- Body Width : 3mm
- Wire Pitch : 4.3 → 5.8mm
- Wire Length : 7.6mm
- Wire Diameter : 0.51mm
- CODE No.:517-6786
