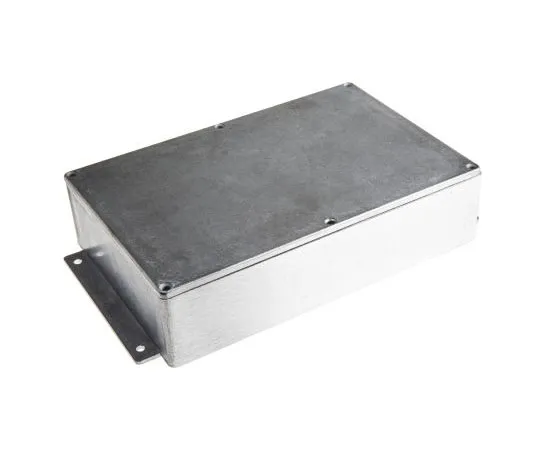

63-7604-80 RS PRO Die Cast Aluminium Enclosure, IP65, Shielded, Flanged, 252 x 146.1 x 55.5mm 517-4162
Product Description
Product Model: 63-7604-80Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7604-80
Product Brand: RS PRO
Features
- RS Pro EMI/RFI, IP65, Flanged Enclosure. The RS Pro EMI/RFI Screened Enclosures are made of high-quality aluminium that guarantee rust resistance, Impact protection and extra durability. Enclosures are sealed by a gasket and provide protection against dust and moisture according to the standard IP66. An inner surface of the enclosures features vertical PCB mounting guides. Features and Benefits:. Diecast aluminium alloy (LM24,BS1490) Lid with lip ensures EMI/RFI screening better than 40dB at 1.0MHz and 76db at 100kHz The temperature range for the seal is -34°C to +80°C, the box however can withstand a temperature of upto 250°C 3mm lids incorporate neoprene self-adhesive backed seal and stainless steel screws for IP66 protection Pre-drilled external mounting flanges and built in PCB guides Wall thickness 1.6mm. FAQ:. What is supplied?. Highly durable Aluminium Base. Aluminium Lid. 4 Assembly Screws
Spec
- Quantity:1piece
- Body Material : Die Cast Aluminium
- Gasket Material : Neoprene
- External Length : 252 mm
- External Width : 146.1 mm
- External Height : 55.5 mm
- IP Rating : IP65
- Colour : Natural
- Lid Colour : Natural
- Flanged : Yes
- Shielded : Yes
- CODE No.:517-4162
