Electronic/Electrical Parts and Controll Equipments

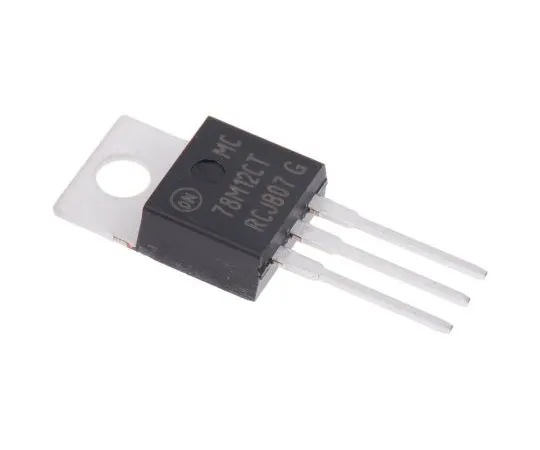

63-7603-99 ON Semiconductor, 12 V Linear Voltage Regulator, 700mA, 1-Channel 3-Pin, TO-220 MC78M12CTG MC78M12CTG
model:
63-7603-99
brand:
ON Semiconductor
Product Description
Product Model: 63-7603-99Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-7603-99
Product Brand: ON Semiconductor
Features
- MC78M00/MC78M00A Linear voltage regulator, ON Semiconductor. The ON Semiconductor MC78M00 / MC78M00A linear voltage regulator is a robust device that combines Internal current limiting, thermal shutdown and output transistor safe operating area protection. It can be ***d in many applications including local, on-card voltage regulation. Available in 5 V, 8 V, 12 V, 15 V, 18 V, 20 V and 24 V with an output current of up to 500 mA with ***d with a suitable heat sink.. Pb Free Packages available
Spec
- Quantity:1set(50pieces)
- Output Voltage : 12 V
- Maximum Output Current : 700mA
- Package Type : TO-220
- Output Type : Fixed
- Mounting Type : Through Hole
- Maximum Input Voltage : 35 V
- Pin Count : 3
- Minimum Operating Temperature : 0 °C
- Maximum Operating Temperature : +125 °C
- Number of Outputs : 1
- Polarity : Positive
- Width : 4.82mm
- CODE No.:178-4730
