Electronic/Electrical Parts and Controll Equipments

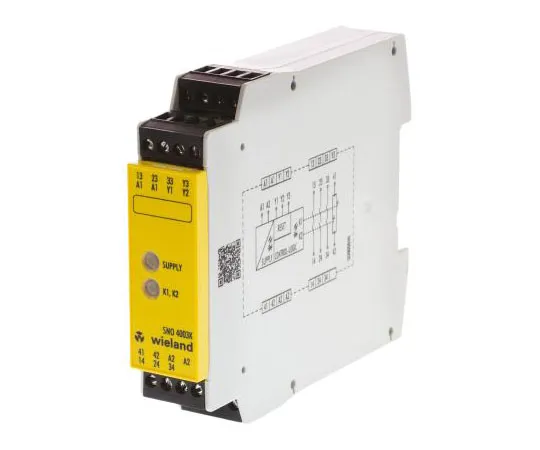

63-7603-80 Wieland SNO 4003 24 V ac/dc Safety Relay Dual Channel With 3 Safety Contacts R1.188.0500.1
Product Description
Product Model: 63-7603-80Product Brand: Wieland Feature […]
Contact Us
Product Details
Product Model: 63-7603-80
Product Brand: Wieland
Features
- SNO 4003K Safety Relay, Single Channel. LED indication for supply voltage and safety circuits Automatic restart function available Contact current rating: 6A Conform to BS EN 60204 Part 1 1993; EN 954-1; IEC 204-1; VDE 0113 Expansion units or external contacting units (with positively driven contacts) may be ***d Dimensions (mm): H 96.5, W 22.5, L 114
Spec
- Quantity:1piece
- Supply Voltage : 24 V ac/dc
- Number of Channels : 2
- Auxiliary Contacts : 1
- Function : Safety Switch/Interlock
- Safety Category ISO 13849-1 : 2
- SIL IEC 61508 : 2
- PL ISO 13849-1 : d
- Safety Contacts : 3
- Range : safeRELAY
- Reset Method : Monitored
- Terminal Type : Screw
- Length : 99mm
- CODE No.:515-1759
