Electronic/Electrical Parts and Controll Equipments

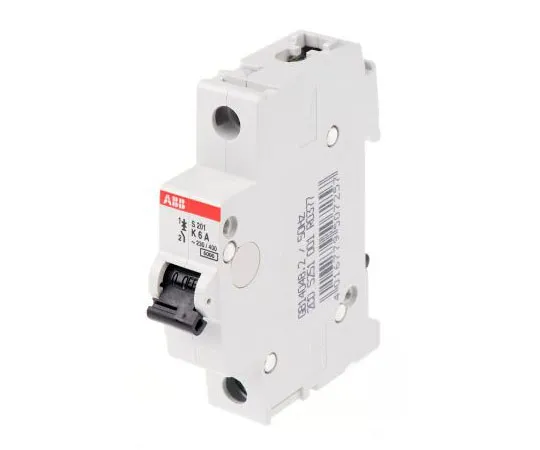

63-7603-50 ABB System M Pro S200 MCB Mini Circuit Breaker 1P, 6 A, 6 kA, Curve K S201-K6
Product Description
Product Model: 63-7603-50Product Brand: ABB Features Cl […]
Contact Us
Product Details
Product Model: 63-7603-50
Product Brand: ABB
Features
- Classic and System pro M products cannot be ***d in combination. Also, accessories cannot be ***d in common. System pro M products can only be installed on newer style Protecta distribution boards.
- Type K Unipolar 6kA-Classic
- Type K characteristics are specially designed to protect motor control circuits and components ***d in circuits. It has a very sensitive thermal curve (magnetic setting of 8 times the standard input current (In)) that provides excellent protection against overcurrents while preventing jamming inrush trips.
- Applicable to DIN rail installation BS EN 60898 Operating temperature range: -25 °C → +55 °C Standard 17.5 mm Width Maximum operating voltage: 440 Vac, 60 Vdc
Spec
- Quantity:1piece
- Range : System M Pro
- Series : S200
- Number of Poles : 1
- Current Rating : 6 A
- Tripping Characteristics : Type K
- Rated AC Voltage : 253 V
- Rated DC Voltage : 72V
- Breaking Capacity : 6 kA
- Length : 88mm
- Width : 17.5mm
- Depth : 75.8mm
- CODE No.:514-0125
