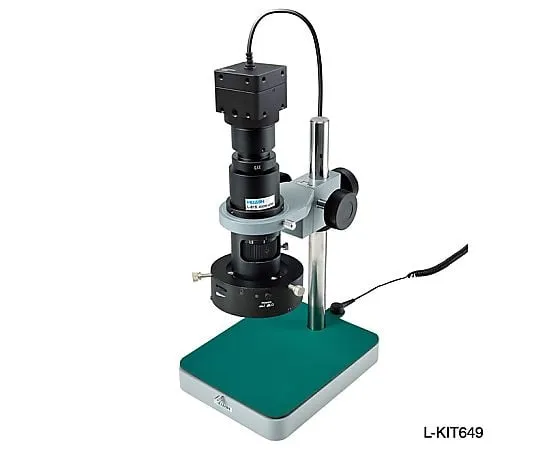

63-2744-45 Microscope (infrared specification) L-KIT649
Product Description
Product Model: 63-2744-45Product Brand: HOZAN TOOL INDU […]
Contact Us
Product Details
Product Model: 63-2744-45
Product Brand: HOZAN TOOL INDUSTRIAL CO., LTD.
Features
- Infrared dedicated USB camera x standard zoom lens
- Compact size base (with infrared ring illumination)
- A 5 million pixel USB camera capable of observing only the near-infrared wavelength range.
- When ***d in conjunction with the attached infrared ring lighting, it enables inspection of scratches, scratches, and foreign matter on colored surfaces that are difficult to observe in the normal visible light range, and observation of film and liquid transmission.
- The lens is a zoom lens that can adjust only the magnification, and can be ***d to some extent even in an environment without auxiliary lighting.
- Recomm***ed for ext***ed observation of relatively small objects.
Spec
- Working Distance: 90 mm
- Field of View: 20 x 15 to 2.7 x 2.1 mm
- magnification: 8.7 to 250 × * magnification with 24 inch Wide Monitor and 1920 × 1080 resolution
- Base Dimensions: 145 (W) x 185 (D) mm
- Comprises (5 Points): L -834 USB camera, L -815 zoom lens, L -509 holder, L -521 standard base and L -709 LED light.
- Quantity: 1 set
- Image sensor: 1/2. 5 "CMOS image sensor
- Frame rate: up to 30 fps with chisel 10 fps when using 5.0 Mega-pixel
- System Requirements: Windows 10/8/7/XP * 1 (32 bit and 64 bit)
- Number of saved pixels: Still image/2592 × 1944 (5.0 Mega-pixel), Movie image/1280 × 960 (1.2 million pixels)
- Output connector: USB 2.0
