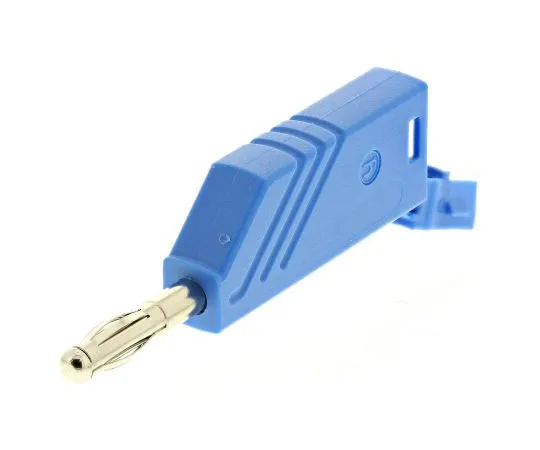

63-7601-09 Blue Male Banana Plug Screw 60V dc 934100102
model:
63-7601-09
brand:
Hirschmann Test & Measurement
Product Description
Product Model: 63-7601-09Product Brand: Hirschmann Test […]
Contact Us
Product Details
Product Model: 63-7601-09
Product Brand: Hirschmann Test & Measurement
Features
- LAS N WS Series 4-mm stackable banana plugs. Hirschmann Test and Measurement LAS N WS Series 4mm nickel and gold plated brass cable stackable plug connectors with screw termination and caged spring, simple assembly via the 'Click System', available in a variety of colours. These 4mm stackable plug connectors are suitable for leads with a conductor cross section of 0.5mm 2 to 1.5mm 2 and an outer diameter maximum of 3.2mm.. 4-mm banana plugs with a hole at the back to connect a second plug with Ø 4 mm Screw connection Allowable lead cross-section: 0.5 → 1.5 mm 2 Rated Voltage 30 VAC / 60 VDC CAT I Rated Current 24A Spring loaded pin
Spec
- Quantity:1piece
- Colour : Blue
- G***er : Male
- Termination Method : Screw
- Voltage Rating : 60V dc
- Current Rating : 24A
- Contact Plating : Nickel
- Spring Contact : Yes
- Length : 58.5mm
- Contact Material : Beryllium Copper
- Insulation Material : Polyamide
- CODE No.:511-4637
