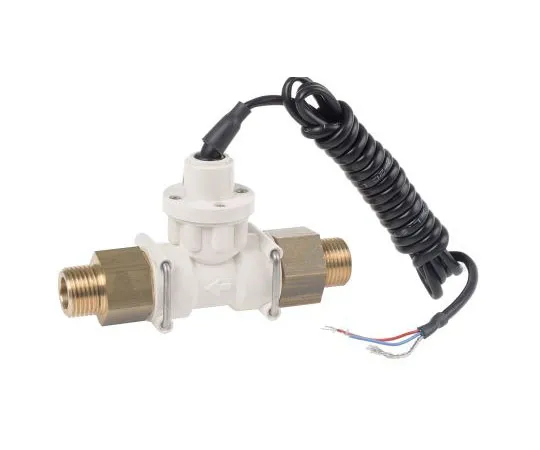

63-7600-94 RS PRO, 0.60 → 10.0 L/min Flow Controller, Cable, NPN, 4.5 → 24 V dc 511-3909
Product Description
Product Model: 63-7600-94Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7600-94
Product Brand: RS PRO
Features
- Turbine Flow Meter: Hall-Effect Detection. This multi-range radial flow, hall-effect turbine flow meter ***s a low inertia turbine supported on robust sapphire bearings, in a chemically resistant housing. This Turbine flow meter ***s Hall Effect sensing so that opaque fluids may still be metered. For OEM applications the fittings can be tailored to suit the installation and speed up production. At the heart of the hall effect turbine flow meter is a precision turbine that rotates freely on robust sapphire bearings. This rotation is detected by a Hall Effect detector. The resulting output is a NPN pulse that is readily interfaced with most electronic display or recording devices. This combination of materials and technology ensures a long life product with reliable operation throughout. Features and Benefits. Economical. PPS body. ± 0.75% reading (when ***d with metra-smart). 1-2% FSD. Sapphire bearings. Hall-effect sensing. 15 Bar rating. IP65. Viton seal as standard. 0.1% Repeatability. 5 to 24 V dc. -15°C to 125°C. Product Application Information. Opaque fluids. Laboratory tests. Cooling equipment. Semiconductor plant. Water treatment. Low viscosity fluids
Spec
- Quantity:1piece
- Maximum Flow Rate : 0.60 → 10.0 L/min
- Electrical Connection : Cable
- Control Output : NPN
- Supply Voltage : 4.5 → 24 V dc
- Pipe Diameter Range : 43132 in
- Minimum Operating Temperature : -25°C
- Maximum Operating Temperature : 125°C
- Current Rating : 10 mA
- CODE No.:511-3909
