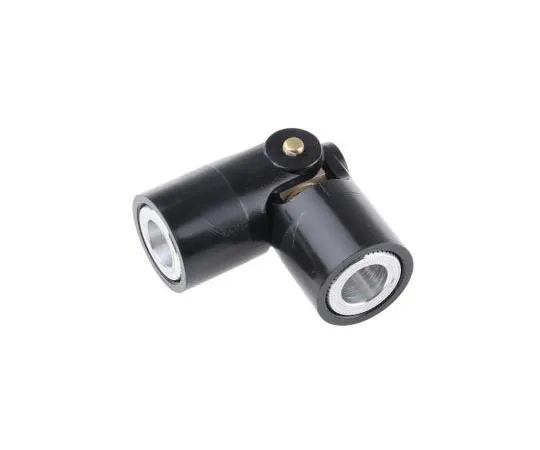

63-7600-89 Huco Universal Joint 105.25.3535, Single, Plain, Bore 12 x 12mm, 74mm Length 105.25.3535
Electronic/Electrical Parts and Controll Equipments

63-7600-89 Huco Universal Joint 105.25.3535, Single, Plain, Bore 12 x 12mm, 74mm Length 105.25.3535

model: 63-7600-89
brand: Huco

Product Description

Product Model: 63-7600-89Product Brand: Huco Features M […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-7600-89
Product Brand: Huco

Features

  • Miniature Acetal Fork Universal Joint. A comprehensive range of light duty universal joints manufactured in non-ferrous metals and Acetal, with a -40 to 85°C operating range. Corrosion resistant construction Freedom from backlash No lubrication required Electrical isolation between shafts Available with metric or imperial bore sizes at both ***s, or as combination metric/imperial types. Additional bore combinations can be created using suitable reducing bushes, see Bushes, Clamps ; Collars - Bore Reducing Bushes.

Spec

  • Quantity:1piece
  • Number of Joints : Single
  • Joint Type : Plain
  • Hub Type : Bored Hub
  • Bore : 12 x 12mm
  • Hub Outer Diameter : 28.5mm
  • Overall Length : 74mm
  • Maximum Working Angle : 40°
  • Peak Torque : 5.6Nm
  • Material : Brass
  • Maximum Speed : 1000rpm
  • Minimum Operating Temperature : -20°C
  • Maximum Operating Temperature : +60°C
  • CODE No.:511-3808
