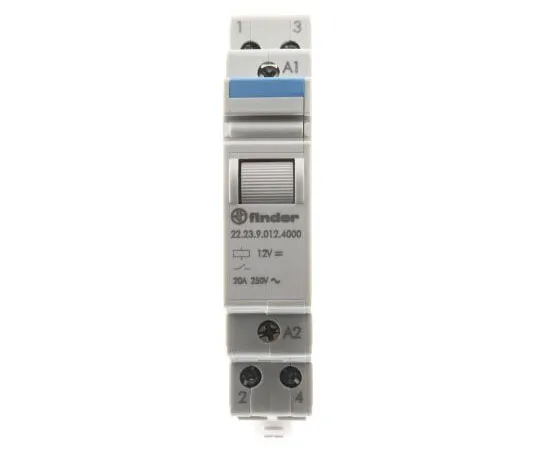

63-7600-58 Finder22 Series SPST-NC, SPST-NO Non-Latching Relay DIN Rail, 12V dc Coil, 20A 22.23.9.012.4000
Product Description
Product Model: 63-7600-58Product Brand: Finder Features […]
Contact Us
Product Details
Product Model: 63-7600-58
Product Brand: Finder
Features
- Modular Relays - 22 Series. The 22 Series are available as DPST-NO or SPST-NO + SPST-NC relays. Equipped with 20A, 250VAC contacts rated at 5000VA AC1, they are ideal for *** in commercial applications including heating, air conditioning and lighting. The relays have a nominal lamp load rating of 1000W for incandescent and 360W for compensated fluorescent. 17.5mm wide (EN 50022) 35mm DIN rail mount housing Manual test button AC and DC coils Insulation between coil and contacts(1.2/50μ); 4KV Mechanical life; 500 x 10 ;sup>3 ;/sup> Temperature range: -40 to +40°C Protection Category: IP20
Spec
- Quantity:1piece
- Coil Voltage : 12V dc
- Coil Power : 1.25W
- Coil Resistance : 115 Ω
- Isolation Coil To Contact : 4kV
- Contact Configuration : SPST-NC, SPST-NO
- Mounting Type : DIN Rail
- Switching Current : 20A
- Terminal Type : Screw
- Number of Poles : 3
- Maximum Switching Voltage AC : 250V ac
- Height : 84mm
- CODE No.:511-1177
