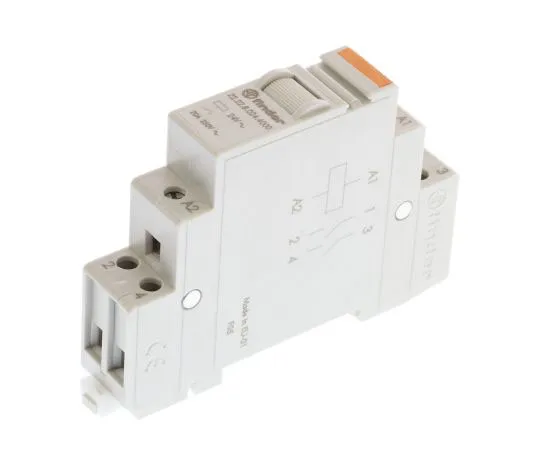

63-7600-55 Finder22 Series DPNO Non-Latching Relay DIN Rail, 24V ac Coil, 20A 22.22.8.024.4000
Electronic/Electrical Parts and Controll Equipments

63-7600-55 Finder22 Series DPNO Non-Latching Relay DIN Rail, 24V ac Coil, 20A 22.22.8.024.4000

model: 63-7600-55
brand: Finder

Product Description

Product Model: 63-7600-55Product Brand: Finder Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-7600-55
Product Brand: Finder

Features

  • Modular Relays - 22 Series. The 22 Series are available as DPST-NO or SPST-NO + SPST-NC relays. Equipped with 20A, 250VAC contacts rated at 5000VA AC1, they are ideal for *** in commercial applications including heating, air conditioning and lighting. The relays have a nominal lamp load rating of 1000W for incandescent and 360W for compensated fluorescent. 17.5mm wide (EN 50022) 35mm DIN rail mount housing Manual test button AC and DC coils Insulation between coil and contacts(1.2/50μ); 4KV Mechanical life; 500 x 10 ;sup>3 ;/sup> Temperature range: -40 to +40°C Protection Category: IP20

Spec

  • Quantity:1piece
  • Coil Voltage : 24V ac
  • Coil Power : 3W
  • Coil Resistance : 42 Ω
  • Isolation Coil To Contact : 4kV
  • Contact Configuration : DPNO
  • Mounting Type : DIN Rail
  • Switching Current : 20A
  • Terminal Type : Screw
  • Number of Poles : 2
  • Maximum Switching Voltage AC : 250V ac
  • Height : 84mm
  • CODE No.:511-1105
