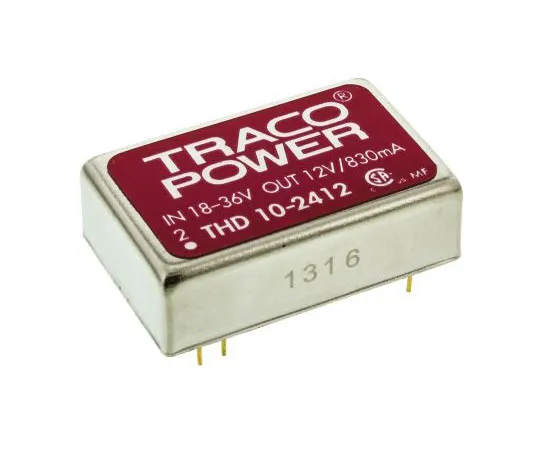

63-7599-95 TRACOPOWER THD 10 10W Isolated DC-DC Converter Through Hole, Voltage in 18 → 36 V dc, Voltage out 12V dc THD 10-2412
Electronic/Electrical Parts and Controll Equipments

63-7599-95 TRACOPOWER THD 10 10W Isolated DC-DC Converter Through Hole, Voltage in 18 → 36 V dc, Voltage out 12V dc THD 10-2412

model: 63-7599-95
brand: TRACOPOWER

Product Description

Product Model: 63-7599-95Product Brand: TRACOPOWER Feat […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-7599-95
Product Brand: TRACOPOWER

Features

  • UL/cUL 60950-1, EN 60950-1, IEC 60950-1. CSA certified for Canada and US, CB. 3. Traco 10W Regulated Isolated DC-DC Converter - THD10 Series. The Traco Power THD 10 series is a range of 10W, single output, regulated, isolated, high performance DC-DC converters with a low profile package and wide input voltage range. These isolated high performance DC-DC converters have an internal EMI filter to EN55022 class A and a full SMD-design using ceramic capacitors for reliability and long life. Typical applications for these DC-DC converters include industrial electronics, instrumentation, data communication systems and battery operated equipment. Products not recomm***ed for new designs please refer to the alternative at the bottom of the page Very high power density in DIP–24 package Wide 2:1 input range Very high efficiency up to 87% I/O isolation 1500V Input filter to meet EN 55022, class A without ext. components Low ripple and noise Continuous short circuit protection Operating temp. range –40°C to +71°C

Spec

  • Quantity:1piece
  • Output Voltage : 12V dc
  • Input Voltage Range : 18 → 36 V dc
  • Input Voltage Nominal : 24 V dc
  • Isolation Voltage : 1500V dc
  • Power Rating : 10W
  • Output Current : 830mA
  • Mounting Type : Through Hole
  • Number of Outputs : 1
  • Efficiency : 87%
  • Package : DIP 24
  • Load Regulation : ±1.2%
  • Maximum Temperature : +71°C
  • Depth : 10mm
  • CODE No.:510-5992
