Features

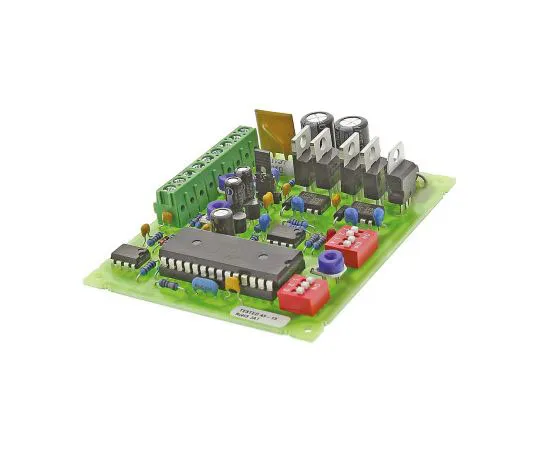

• 4 Quadrant 24V. The drive is designed for modern automation systems. Control can be performed easily with relay or open collector outputs. Analogue controls work with ±10V voltage. Usable motor can be permanent magnet motor with brushes,in power range of 5 to 80 W. Due to the advanced pulse control (PWM) the unit operates with high efficiency, low temperature losses and provides a high starting torque. Loading of the motor can be compensated with in-built RI-adjustment. The current, or in other words, the torque of the motor can be controlled with DIP-switch. The operation of the current limit is indicated with a red led. There are a variety of braking options available in this device. For most effective braking "reverse braking" -mode can be ***d. In this mode reversed driving is ***d for braking, which effects extremely fast function. Additionally the card utilises short circuit braking which short circuits the motor circuit during the braking. The drive also has in-built and selectable timing for the acceleration and deceleration ramps. 4 Quadrants Self recovery f*** (4A) Adjustable current limit Adjustable acceleration / deceleration ramps Load compensation (IR comp) Special braking options Supply voltage compensation Positive logic control
