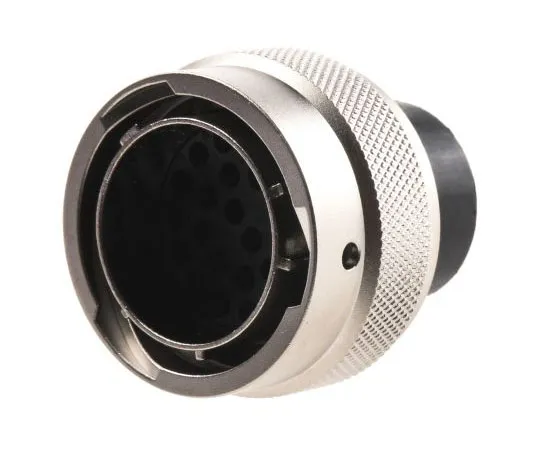

63-7598-94 Souriau UTO Series, 26 Way Cable Mount MIL Spec Circular Connector Plug, Pin Contacts,Shell Size 16, Bayonet Coupling, UT0W61626PH
Product Description
Product Model: 63-7598-94Product Brand: Souriau Feature […]
Contact Us
Product Details
Product Model: 63-7598-94
Product Brand: Souriau
Features
- UTOW Cable Plug for Pin Contacts. Sealed cylindrical metal connectors IP 68, interchangeable with series TRIM TRIO and UTP. High density contact size, compared to UTO connectors. Plugs for size 20 male contacts (to be ordered separately) (see stock no. ; 191-535 191-535 ). Metal casing with bayonet locking ring guaranteeing 500 cycles. 5-pin guiding ensures correct insertion between plug and base. Cable connectors and shielded sealed cable gland connectors are available separately.
Spec
- Quantity:1piece
- Number of Contacts : 26
- G***er : Male
- Contact G***er : Male
- Shell Size : 16
- Mounting Type : Cable Mount
- Military Standard : MIL-DTL-26482
- Termination Method : Crimp
- Mating Type : Bayonet Coupling
- Body Orientation : Straight
- Series : UTO
- Minimum Operating Temperature : -40°C
- CODE No.:510-0931
